RTS Connect - Product Information

Product Description and Features

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with an Ingersoll Rand® proprietary torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Product web pages:

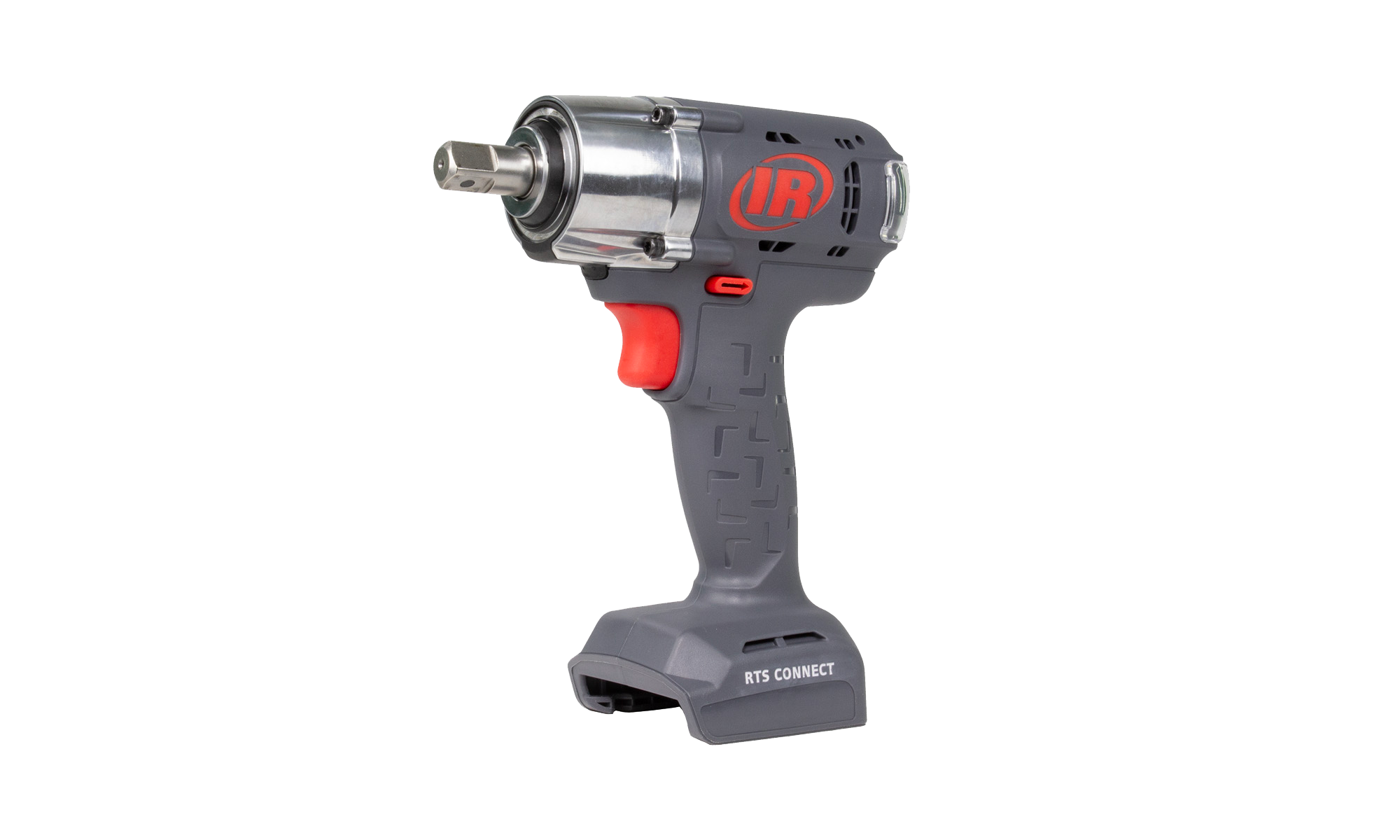

RTS Connect, 20V Reactionless Tightening System

20V Lithium-Ion Battery - IQV®20 Series - BL2022

20V Lithium-Ion Battery - IQV®20 Series - BL2012

Installation and Maintenance

Operation

Programming RTS tool from the backcap

Programming RTS tool from mobile devices

Warranty

One-Year Limited Warranty Coverage – Policy Statement

Manuals

Safety Manual:

RTS Product Safety Information (TL-RTS-SIM)

Parts Manual:

RTS Product Parts Information (TL-RTS-PLM)

Product Information:

RTS Product Information (TL-RTS-PIM)

Technical Customer Service:

If assistance is needed in the product selection process, please contact Ingersoll Rand's Power Tool Technical Support Team through Submit a Request via our Help Center, or email at IRTechSupport@irco.com or call us at 866-TOOL-HLP (866-866-5457).
