Product Description and Features
INSIGHTqc™ with Integrated DIO is our latest version of the corded controller.
With our focus on continuous improvement into our product portfolio, we have made architectural changes onto our INSIGHTqc Corded Controller Platform. We will have two versions of INSIGHTqc Corded Controller Platform.
Q: Do QCD and QCD with Integrated DIO use the same software? A: No. QCD software versions start with 200.x.x.x, while QCD with Integrated DIO requires versions starting with 400.x.x.x. Software updates are available at irtools.com/software-help.

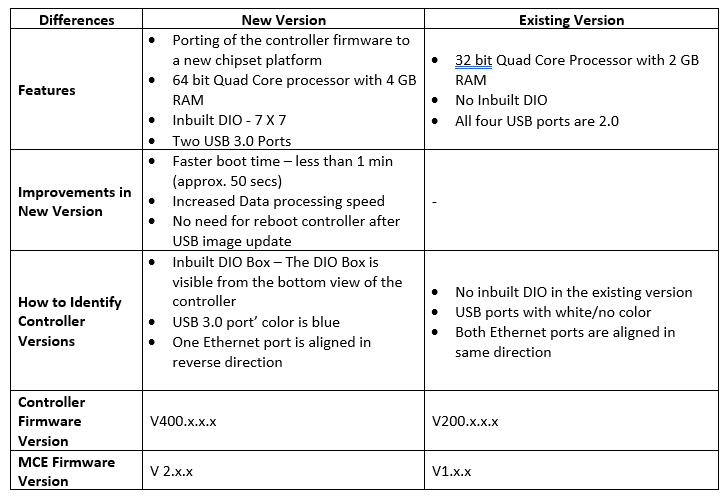

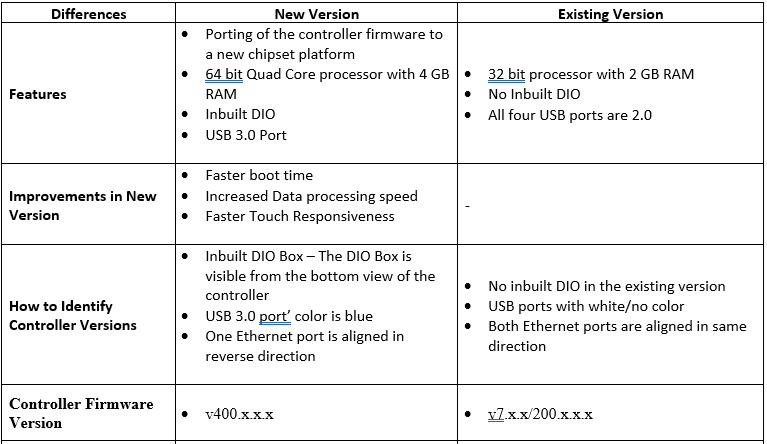

Q: What distinguishes the QCD from the QCD with Integrated DIO? A: The QCD with Integrated DIO is designed to match the original QCD in terms of fit, form, and function, but adds Integrated DIO and other enhancements. See comparison chart below.
Q: What is the maximum length of the USB 3.0 cable used for accessories? A: The recommended maximum length of the USB 3.0 cable used for accessories is 3M/9Ft.
Intergrated IO Wiring
Click here to view the wiring diagram.
Manuals
PENDING upload at irtools.com and Salsify PIM
Problem Reporting
Technical, Warranty and Quality Support
Submit a Request – for general Technical or Warranty support
Report a Quality Issue - directly to our Technical Services Team.
Email: irtoolhelp@irco.com
Phone: 800-483-4981
