G4911 IQV20™ Tire Buffer

Product Description and Features

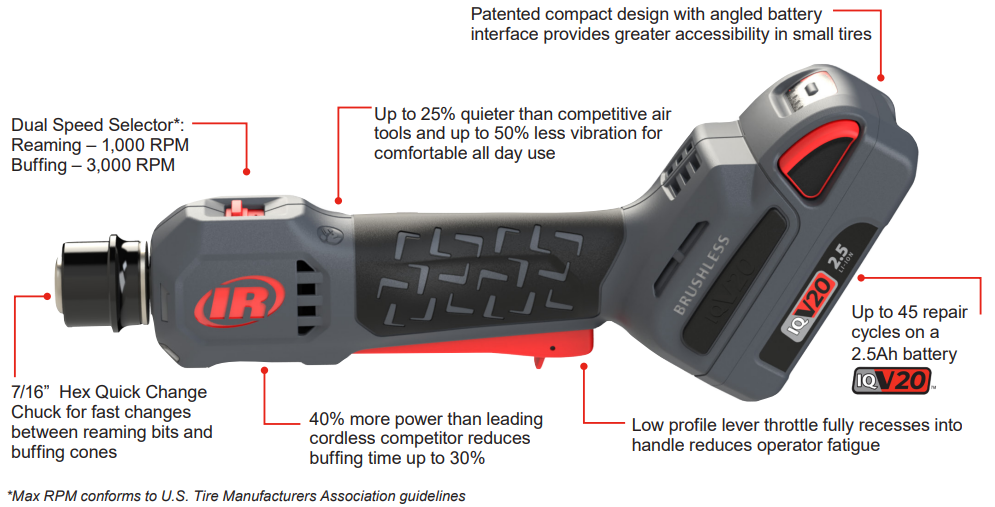

Pneumatic has met its match. Introducing the world’s first 20V tire buffer – the G4911 Cordless Tire Buffer from Ingersoll Rand®. Capable of 45 repairs on a single 2.5Ah battery, the G4911 makes tire repair easy – whether it’s quick work on passenger vehicles or tackling tough repairs on heavy equipment. The compact IQV20™ cordless design with angled battery interface is patented to provide greater tool accessibility inside small tires without the maneuverability restrictions of an air hose. The G4911 is up to 25% quieter with 50% less vibration than competitive air tools, greatly reducing shop noise and operator discomfort. A low-profile lever throttle fully recesses into the slim handle for maximum comfort and control while creating the repair surface. Prevent expensive repair mistakes with a dedicated two speed selector for reaming and buffing that controls max RPM, in alignment with U.S. Tire Manufacturers repair guidelines. Unleash your productivity with a tool that lets you ditch the air hose.

Installation, Setup and Use

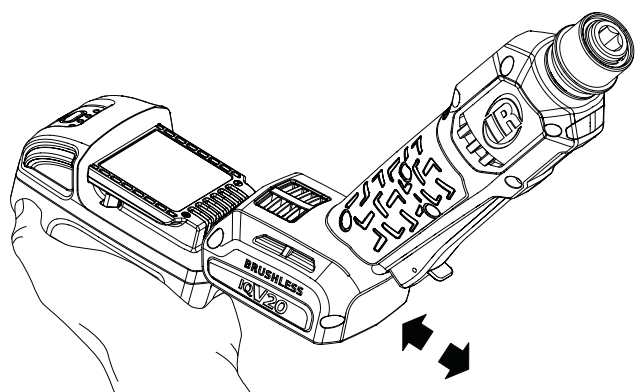

Installing the Battery

1. Slide the IQV20 Battery into the Battery Compartment.

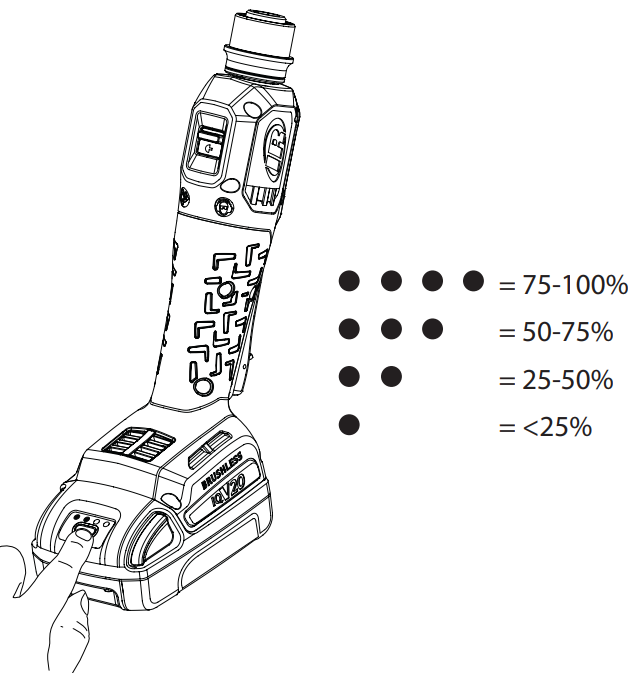

2. Check that the battery level on the Battery is charged by pressing the Button on the front of the Battery.

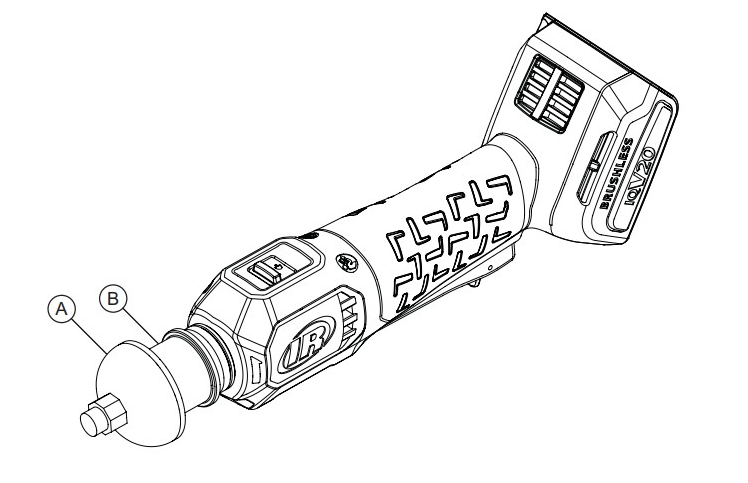

Reamer Bits/Buffing Wheel Installation

1. Move the Collet (B) forward and hold it.
2. Insert the Attachment (A) into the Collet (B).
3. Release the Collet (B).
4. Check to ensure the Attachment (A) is held securely in the Collet (B).

Reamer Bits/Buffing Wheel Adjustment

1. Move the Collet (B) forward.
2. Move the Attachment (A) to desired position.
3. Release the Collet (B).

Warranty

This tool is covered by a 3-year limited warranty. For additional information regarding our 3-year limited warranty, please visit the link below.

Three-Year Limited Warranty Cordless

Service, Repair, and Maintenance

Tool repair and maintenance should only be carried out by an Authorized Service Center. Refer all communications to the nearest Ingersoll Rand Office or Distributor.

Manuals

Please click the links below to download the product manuals.

G4911 Parts Information Manual

G4911 Product Information Manual

G4911 Regulatory Compliance Document

G4911 Product Safety Information

For Additional Information and Assistance:

Browse the Knowledge Base:  https://irtoolhelp.ingersollrand.com

Technical Support:  Contact Ingersoll Rand Technical Support at irtechsupport@irco.com

Warranty Support:  Contact the Warranty Department at TFM_Warranty@irco.com

Give us a call at 1-800-483-4981 or Click HERE to submit a request.

References:

TL-G4911-PIM_ed5_E

TL-G4911-PLM_ed3_C
