Customers and Distributors,
You may ask what quick change (QC) retainer do I need for my air hammer?
The table below should help.
There are two types of chisel retainers for air hammers using .401 accessories -- spring style and hammer coupler. Both can be referred to as 'QC'.
See below table.
| Air Hammer Model | Spring Style P/N | Hammer Coupler P/N |
| 114, 115, 116, 117, 118MAX, 122MAX | 115-183 (9505 is 2-pack) | 9510 |
| 121, 132, 772 | AVC10-183A | 9512 |

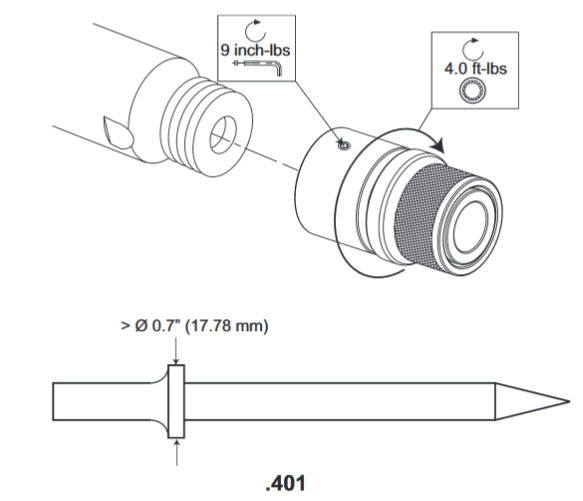

Installation drawing/diagram:
