Impact Wrench Socket Retainer Kits and Retaining Rings

Question

What Socket Retainer Kit or Retainer Ring do I need for my pneumatic or cordless Impact Wrench?

Environment

Service Centers and End-Users who are replacing the socket retainer for an Impact Wrench based on the tool's drive size and retainer style (Pin vs Hog-Ring).

Answer

Use the two following tables to identify the appropriate Socket Retainer Kit or Retaining Ring for your Impact.  The listed kits/rings can be used for either pneumatic or cordless tools for the stated drive size.

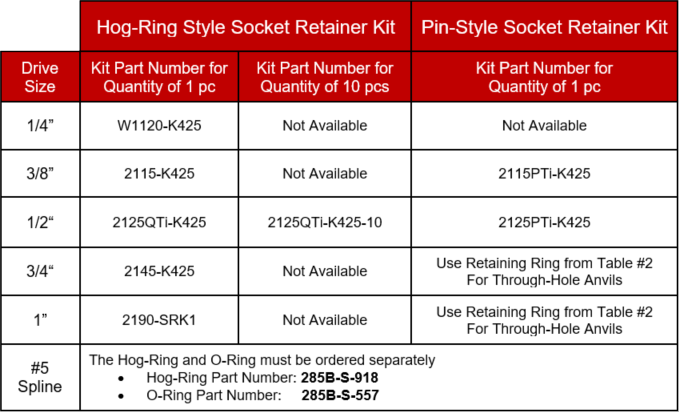

TABLE #1

 Notes:

• Hog-Ring Style Socket Retainer Kits include a metal Retaining Ring and a rubber O-Ring
• Pin-Style Socket Retainer Kits include a Retaining Pin and Spring

Retaining Rings For Through-Hole Anvils (3/4" and 1" Drive)

TABLE #2

If assistance is needed in the product selection process, please contact Ingersoll Rand's Power Tool Technical Support Team through Submit a Request via our Help Center, or email at IRTechSupport@irco.com or call us at 866-TOOL-HLP (866-866-5457).
