Question(s)
- What got changed with the QX "Connect Series"?
- What is the new model number equivalent to each legacy QX series?
- Can I still service or get parts for legacy QX series?
Answer
- Multicolor LEDs. Improved Wireless performance. Real time clock maintains Date/Time on power cycle. 32 PSETs available for programming from keypad. Simplified menu on tool for improved user experience. Bluetooth for easy communication to the new Insight Connect App (coming Q4 2021).
|
Legacy to QX "Connect Series" Mapping |
||||
Legacy |
QX Connect |
Comments |
||
Tool Type |
Example |
Tool Type |
Example |
|
| QXN | QXN2PT12EQ4 | QXFN | QXFN2PT012EQ4 | Direct mapping from legacy QX to QX Connect with same functionality. |
| QXC | QXC2PT12EQ4 | QXFD | QXFD2PT012EQ4 | Direct mapping from legacy QX to QX Connect with same functionality. |
| QXX | QXX2PT12EQ4 | QXXD | QXXD2PT012EQ4 | Direct mapping from legacy QX to QX Connect with same functionality. |
New Feature Offerings |
||||
| QXN* | QXN2PT12EQ4 | QXBN | QXBN2PT012EQ4 | QXBN is QXN with Bluetooth to use with the App |
| QXC* | QXC2PT12EQ4 | QXBD | QXBD2PT012EQ4 | QXBD is QXC with Bluetooth |
| QXX* | QXX2PT12EQ4 | QXXN | QXXN2PT012EQ4 | QXXN is either "QXN with Zigbee" OR "QXX without screen" |

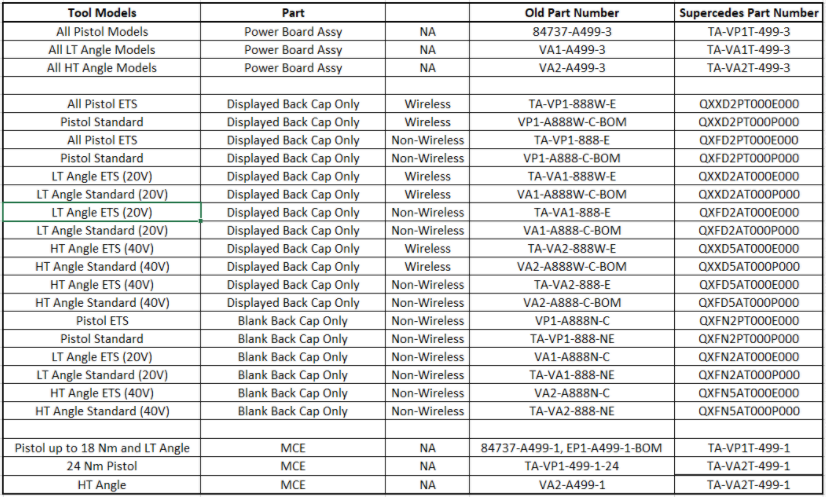

- Spare part information:
All new display assemblies will be loaded with firmware version 120.x.x.x. This version is compatible with ICS (Package 1.4.15 or greater), QCX (2.0.27 or greater), MTC (100.1.0 or greater) and the Insight Connect App (3.0 or greater).
1. If the current MCE version on the tool is 2.x.x.x, 2.5.x.x or 3.x.x.x use the INSIGHTqx APP (Version 3.xx for Android or 1.xx for iOS), or QCX or MTC controller to perform a One Image Firmware Update.
Note: If the current MCE version is 1.x.x.x you will have to connect a display module with legacy firmware 4.3.x.x to the tool. Then using ICS 6.3.4.x, update the MCE firmware. Once the MCE is updated, connect the new display module to the tool and follow the steps above.
All new MCE boards will be loaded with firmware 3.6.0.1. This version is compatible with ICS, QCX, and MTC display versions.
1. For a legacy tool using ICS:
a. Install the new MCE board.
b. Update the MCE firmware using the compatible ICS software.
2. For a legacy tool using a QCX1:1 or MTC controller:
a. Install the new MCE board.
b. Update MCE firmware as recommended after plugging into the controller with a USB cable.
3. For a QX Connect tool using ICS, QCX or MTC:
a. Install the new MCE board.
b. Update the tool using the INSIGHTqx APP (Version 3.xx for Android or 1.xx for iOS), or QCX or MTC controller to perform a One Image Firmware Update.
Additional details:
- [FAQ] - QX *NEW* Model Identification
- [FAQ] - QX "Connect Series" 1 to 1 legacy model crossover matrix
- [TSB] - DC2021-003 QX Spare Parts Obsolescence/QX Connect (**Service Centers only)
