[TSB] CL2019-001 Cordless Impact Bushing Lubrication

Subject:

Cordless Impact Bushing Lubrication

Affected Products:

All Cordless Impactools

Affected Date Range:

All

Related Issue #:

None

Issue Description:

Customer Complaint: Tool will exhibit whining or groaning sound when it is running.
Cause: Insufficient lubrication.

Actions Required:

Routine lubrication of the impact mechanism is required as a part of regular maintenance. If this maintenance is not performed, the hammer case bushing can become dry resulting in a whining or groaning sound while the tool is running.

1.  Apply 2-3 drops of IR #10 oil to the bushing:

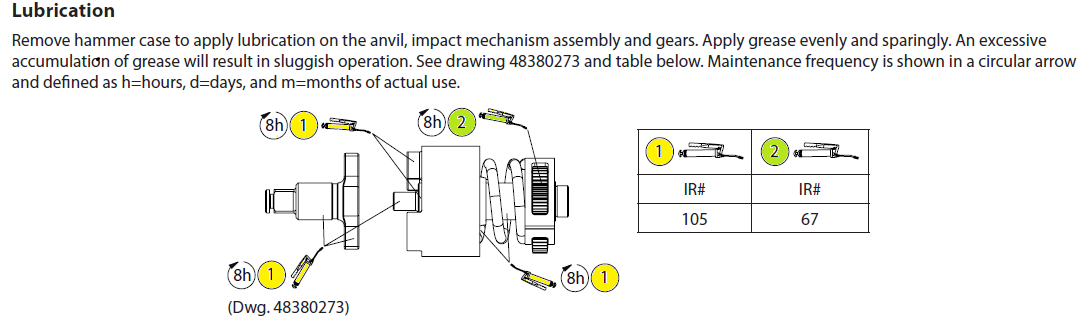

2.  If the noise persists then remove hammer case and clean & lubricate as instructed in the Product Information manual (shown below). Apply IR 105 grease to the anvil and impact mechanism assembly. Apply IR 67 Grease to the gears.

Material Disposition:

None

Warranty Strategy:

This repair is not warrantable.

Additional Comments:

Routine lubrication of the impact mechanism is required as a part of regular maintenance. Refer to the Product Information manual for recommended lubrication practices and frequency.
