Get to Know the IQi Series Controller and Low Torque Precision Screwdrivers.

Find specifications, engineering files, integration resources, manuals, drawings, and technical support for the IQi Series.

The IQi Series is a low-torque electric fastening system consisting of the IQi controller, inline electric screwdrivers, and supporting accessories for precision assembly applications.

This page provides quick access to product specifications, engineering resources, integration files, manuals, drawings, and technical support for the IQi Series.

Product Family Overview

The IQi Series includes the following system components.

System Components

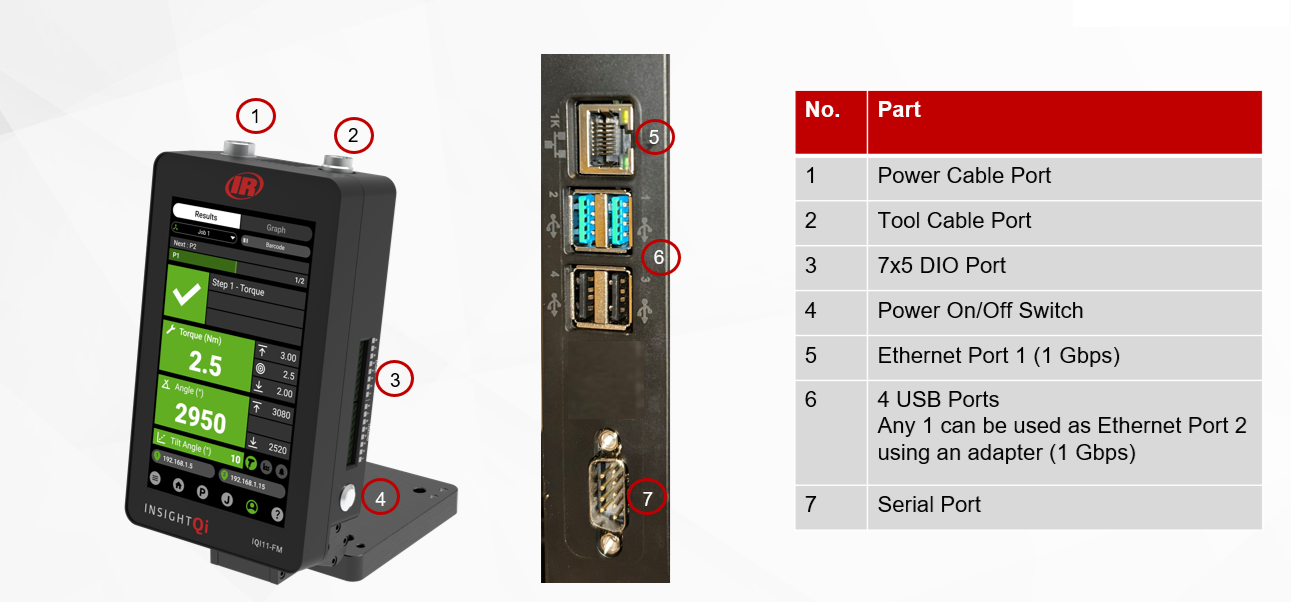

Controller

Model: IQI11-FM

Screwdriver Configurations

Transducerized Models

Designed for applications requiring the highest fastening accuracy and complete process traceability.

Features

• ±3.5% torque accuracy
• Live trace during tightening
• Tilt angle control
• Hold torque
• Real-time fastening data
• Integrated controller communication

Current-Control Models

Designed for production fastening applications requiring speed, simplicity, and repeatability.

Features

• ±7% torque accuracy
• Reliable current-controlled tightening
• Integrated IQi controller compatibility

Required Components

Power supplies and tool cables are ordered separately.

Note: Power supplies and tool cables are not included with the controller or screwdriver and must be ordered separately.

Ordering Information

Use the following components when configuring an IQi fastening system.

Product Specifications

Select the appropriate specifications for your tool configuration.

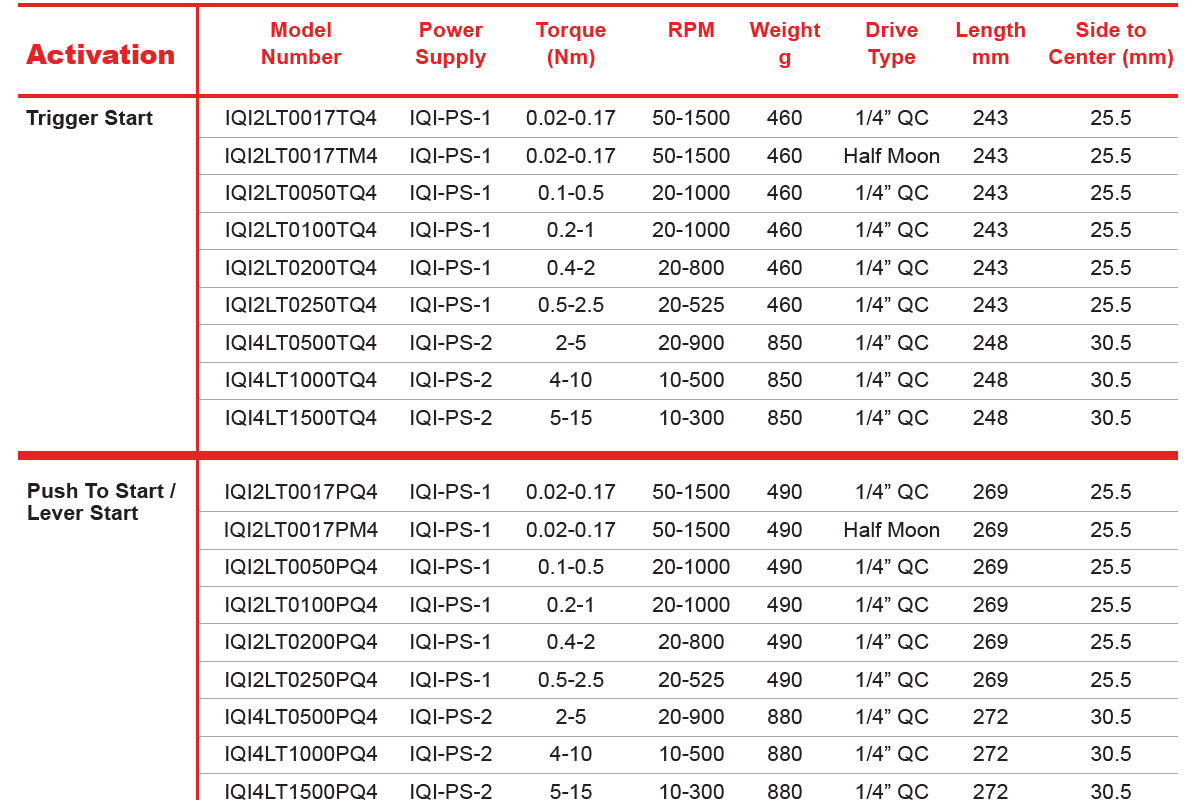

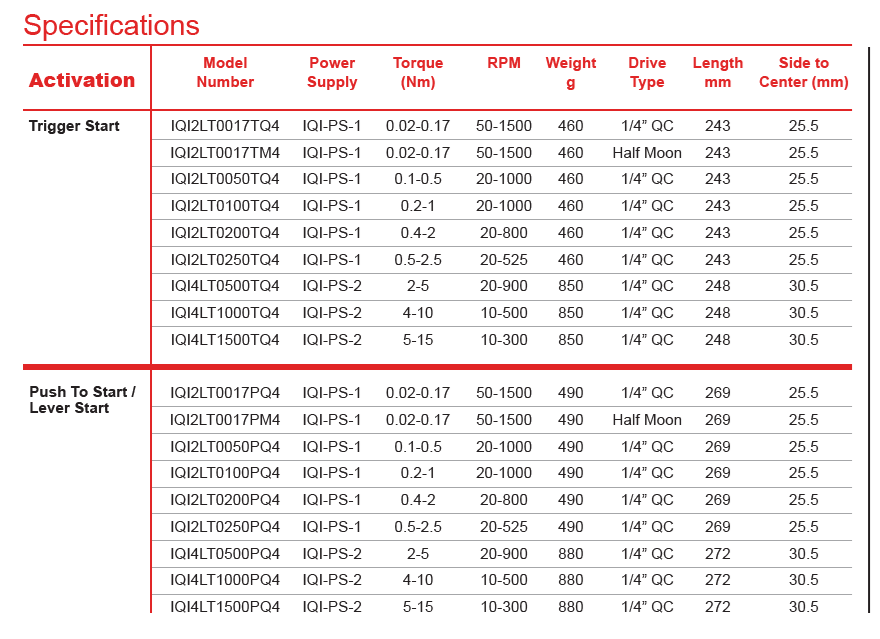

Transducerized Inline Screwdriver Specifications

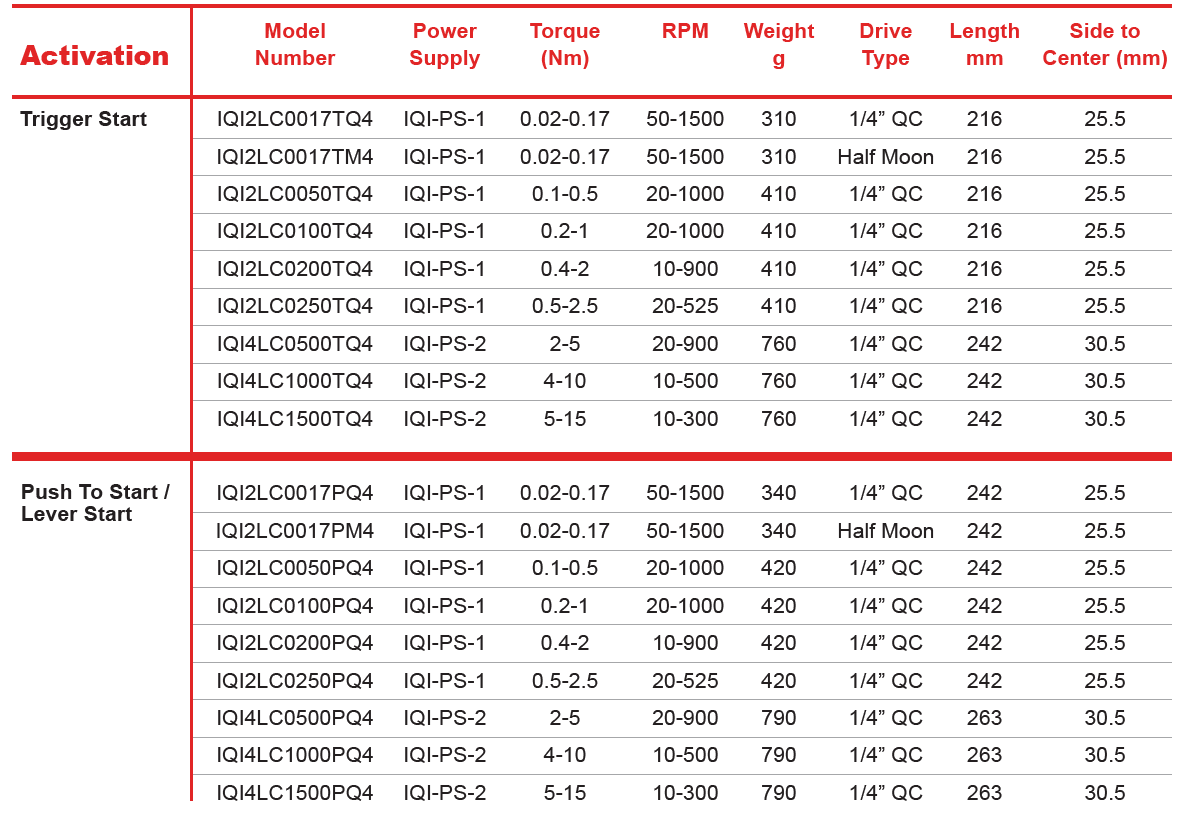

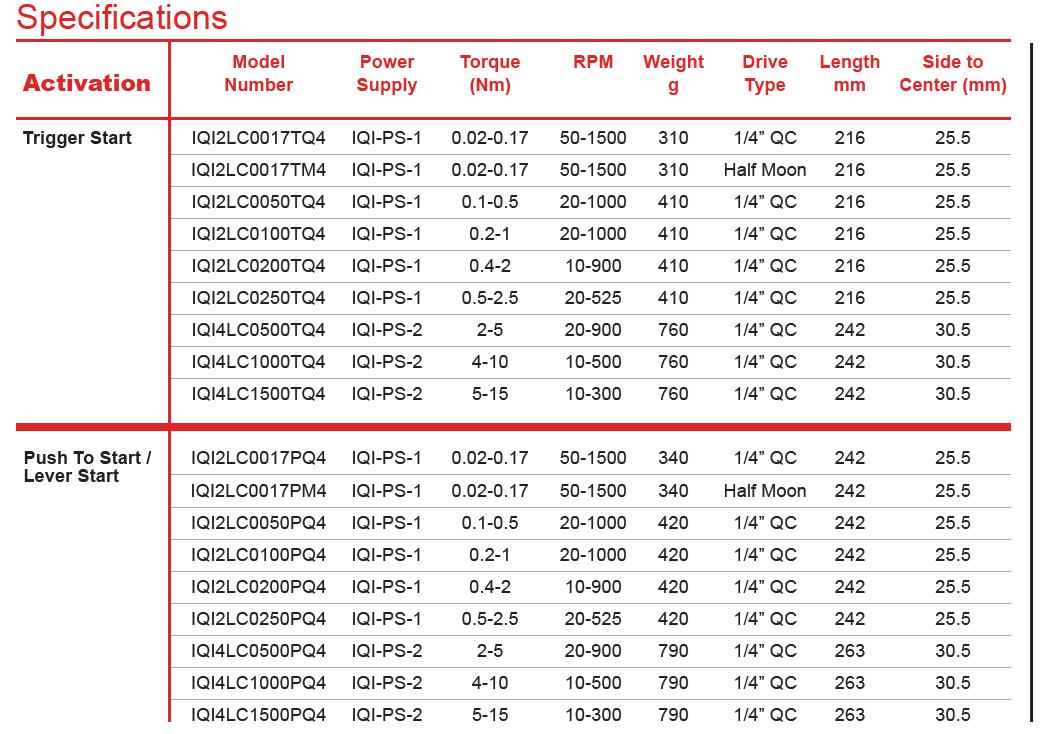

Current-Control Inline Screwdriver Specifications

Controller Integration Resources

Fieldbus Support Files

Download Fieldbus support files for controller integration.

• Ethernet/IP EDS file
• Profinet GSDML file
• Fieldbus I/O Behaviors

Digital I/O

Resources for configuring digital inputs and outputs.

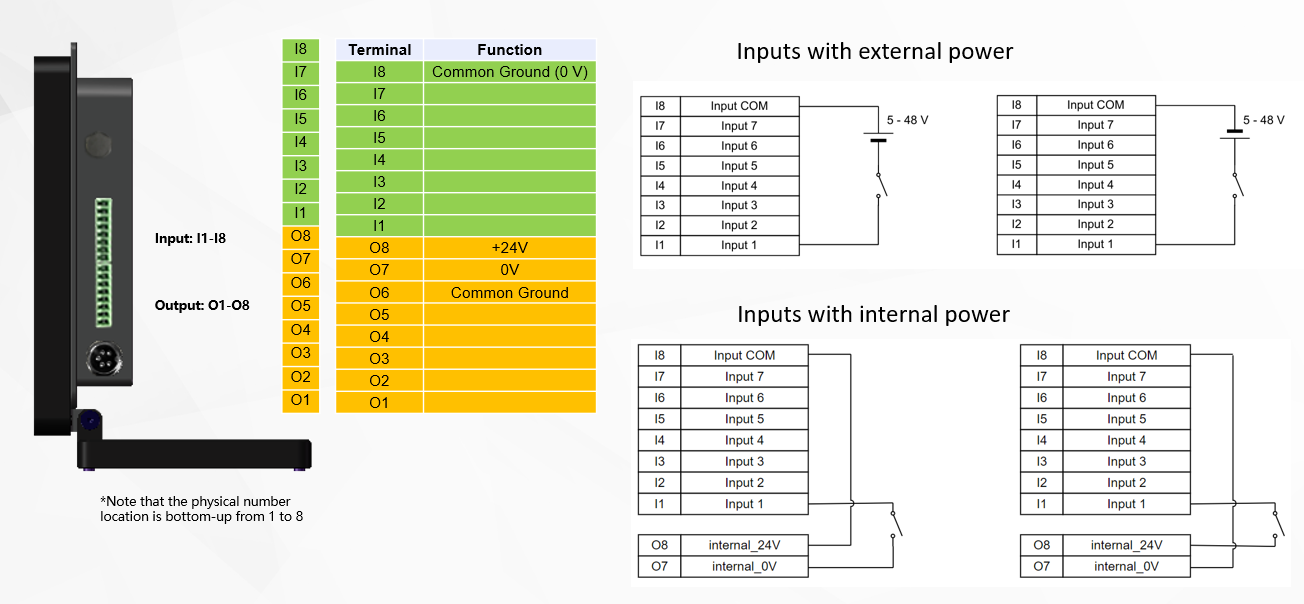

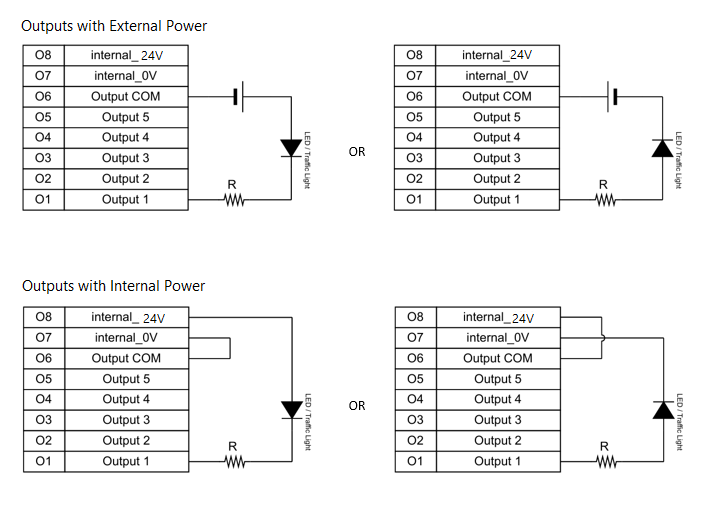

Internal DIO Wiring

Download a list of available DIO Behaviors

PFOP Support

Programming resources for PFOP integration.

• Supported MID commands

Manuals and Documentation

Controller

• Download controller manuals

Screwdrivers

• Download tool manuals and Declarations of Conformity

Torque Arms

• Download torque arm manuals

Product Literature

• Download product brochures and flyers

CAD Drawings and Engineering Files

Download engineering drawings by component.

Controller

• Download controller drawings

Transducerized Screwdrivers

• 2D drawings
• Download IQI4LT-T STP drawing
• Download IQI2LT0250TQ4 STP drawing
• Download IQI2LT0250PQ4 STP drawing
• Download IQI4LT-P STP drawing

Current-Control Screwdrivers

• 2D Drawings
• Download IQI4LC-T STP drawing
• Download IQI2LC0250TQ4 STP drawing
• Download IQI2LC0250PQ4 STP drawing
• Download IQI4LC-P STEP drawing

Power Adapters

• Download IQI-PS-1 2D drawing
• IQI-PS-2 2D drawing
• Download IQI-PS-1 STP drawing
• Download IQI-PS-2 STP drawing

Tool Cables

• Download tool cable drawings

Torque Arms

• Download outline drawings
• Download 3D drawings

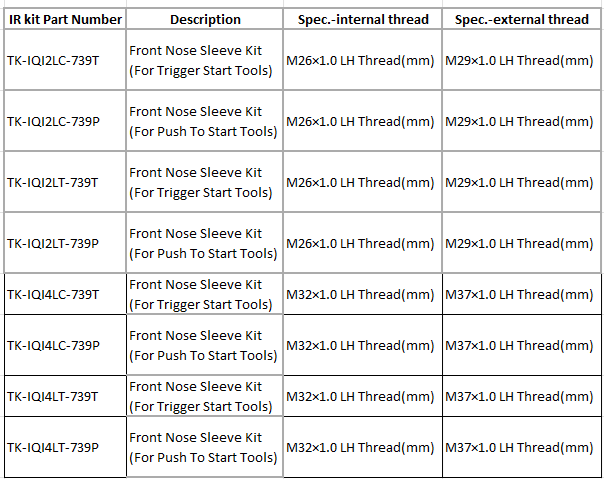

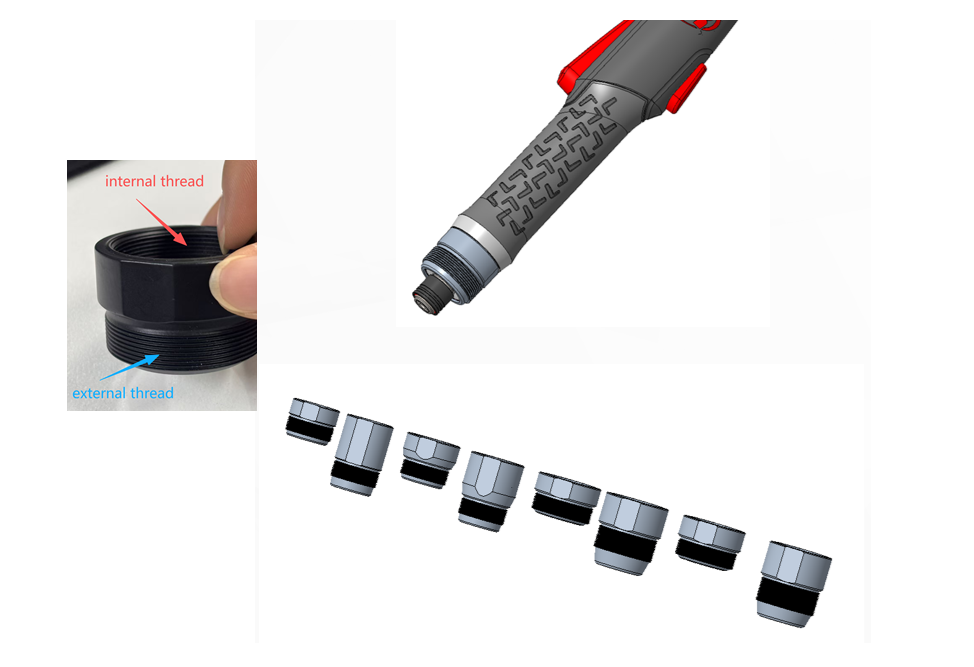

Nose Sleeves

• Download STP drawings

Accessories

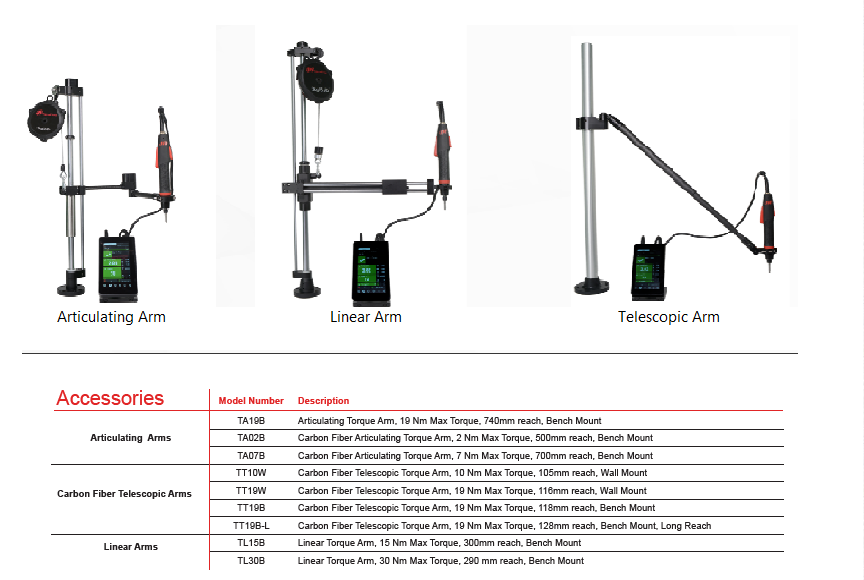

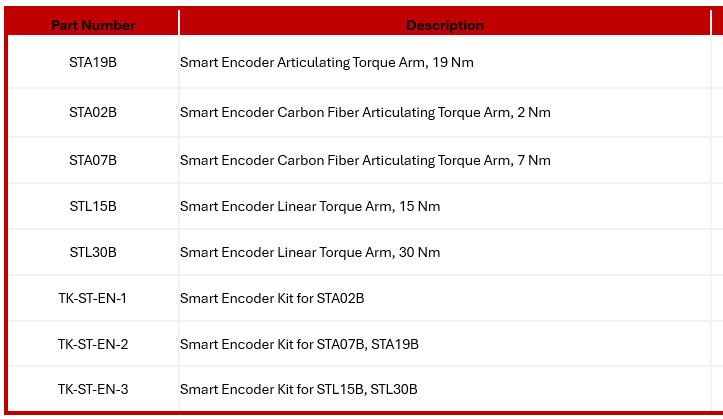

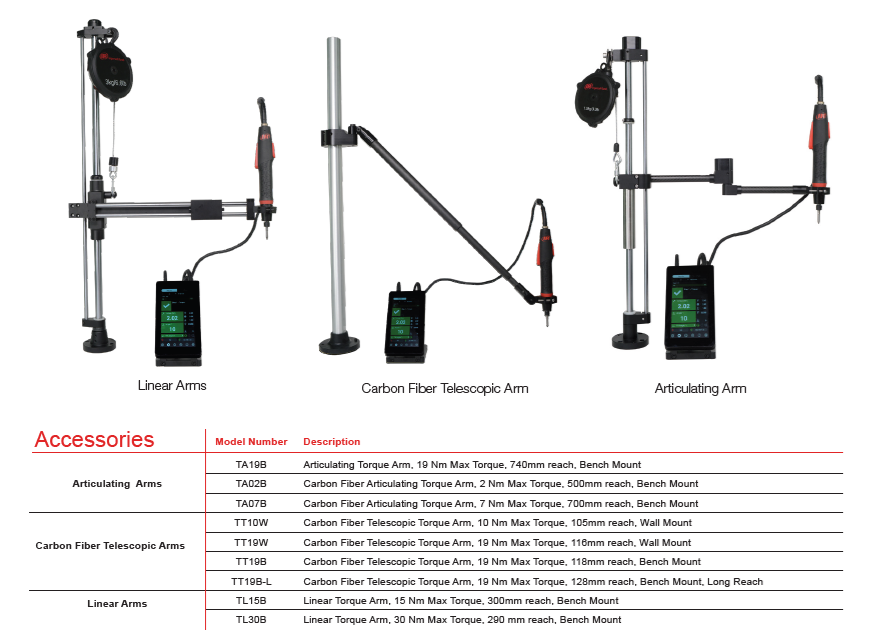

Smart Torque Arms

Nose Sleeves

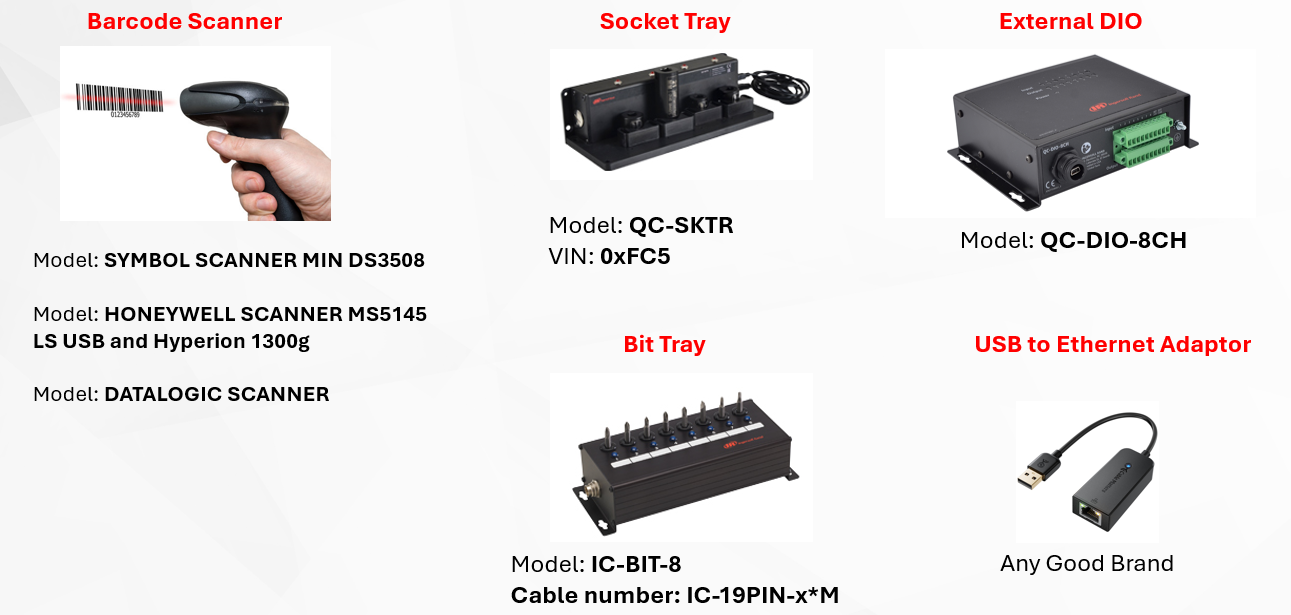

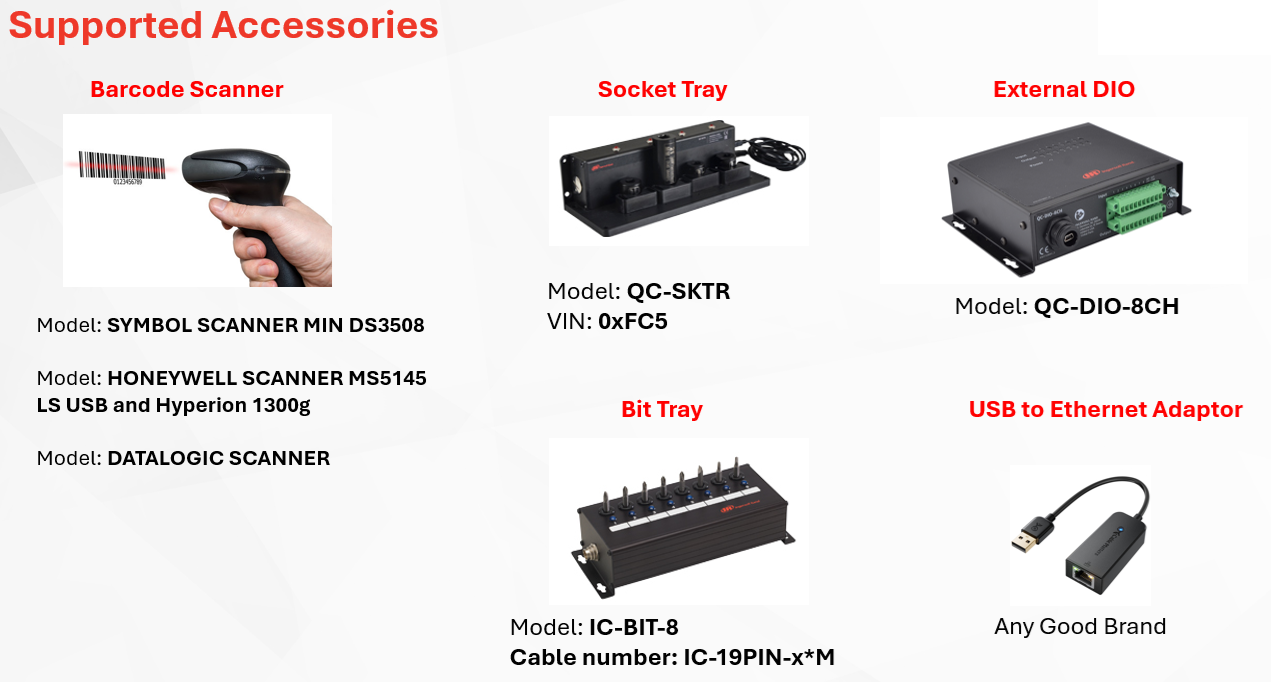

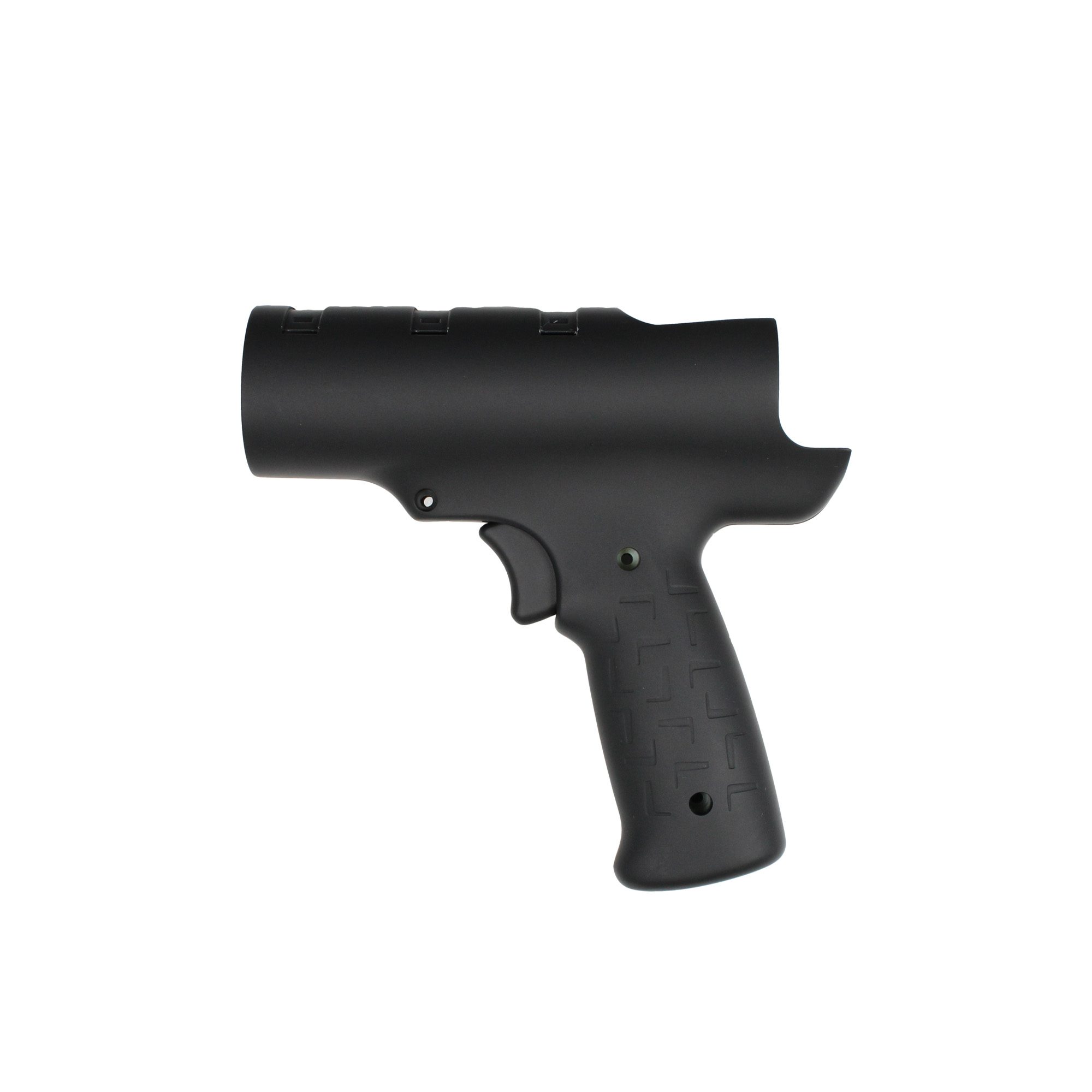

Supported Accessories

Frequently Asked Questions

Visit IQI FAQ to find answers to common questions about installation, setup, networking, controller configuration, and operation

Before You Contact Technical Support

Having the following information available will help us assist you more quickly.

• Controller model
• Tool model
• Tool serial number
• Controller firmware version
• Description of the issue
• Any error codes or alarms
• Application details (if applicable)

Technical Support

For technical assistance, warranty questions, or product quality concerns:

Technical and Warranty Support

• Submit a Technical Support Request
• Submit a Warranty Request

Quality Issues

• Report a Quality Issue

Email

irtoolhelp@irco.com
