Exploring the G5352 IQV20™ Cordless Angle Grinder

The G5352 IQV20™ Cordless Angle Grinder delivers 1.0+ HP brushless motor performance for grinding and cutting in industrial, metal fabrication, and automotive environments. Its cordless design supports mobile work without an air compressor or power cord, while six selectable speeds help match tool performance to the accessory and material.

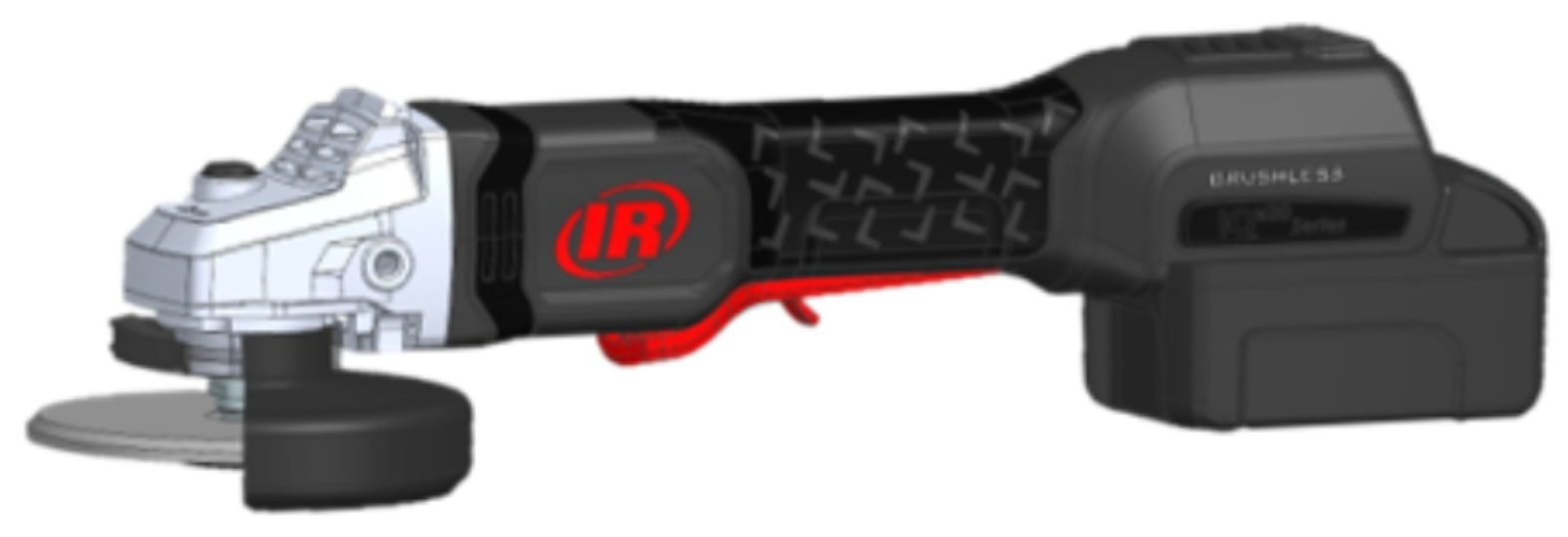

Ingersoll Rand G5352 IQV20 cordless angle grinder.

Safety Notice

Read and follow the applicable tool, battery, charger, and accessory safety information before use. The features described here do not replace the safety instructions or operating procedures for your tool.

Grinder Applications

The G5352 accommodates 4.5–5-inch wheels for applications such as:

Work Area	Typical Applications
Vehicle service and collision repair	Exhaust work, cutting rusted bolts, removing damaged sections, and rust removal.
Salvage	Cutting away unwanted parts and cleaning up recovered components.
Metal fabrication	Weld preparation, weld cleanup, and finishing.
Maintenance, repair, and operations	Rust removal, cutting, and weld preparation.
Manufacturing	Surface finishing and cutting metal components.

Features at a Glance

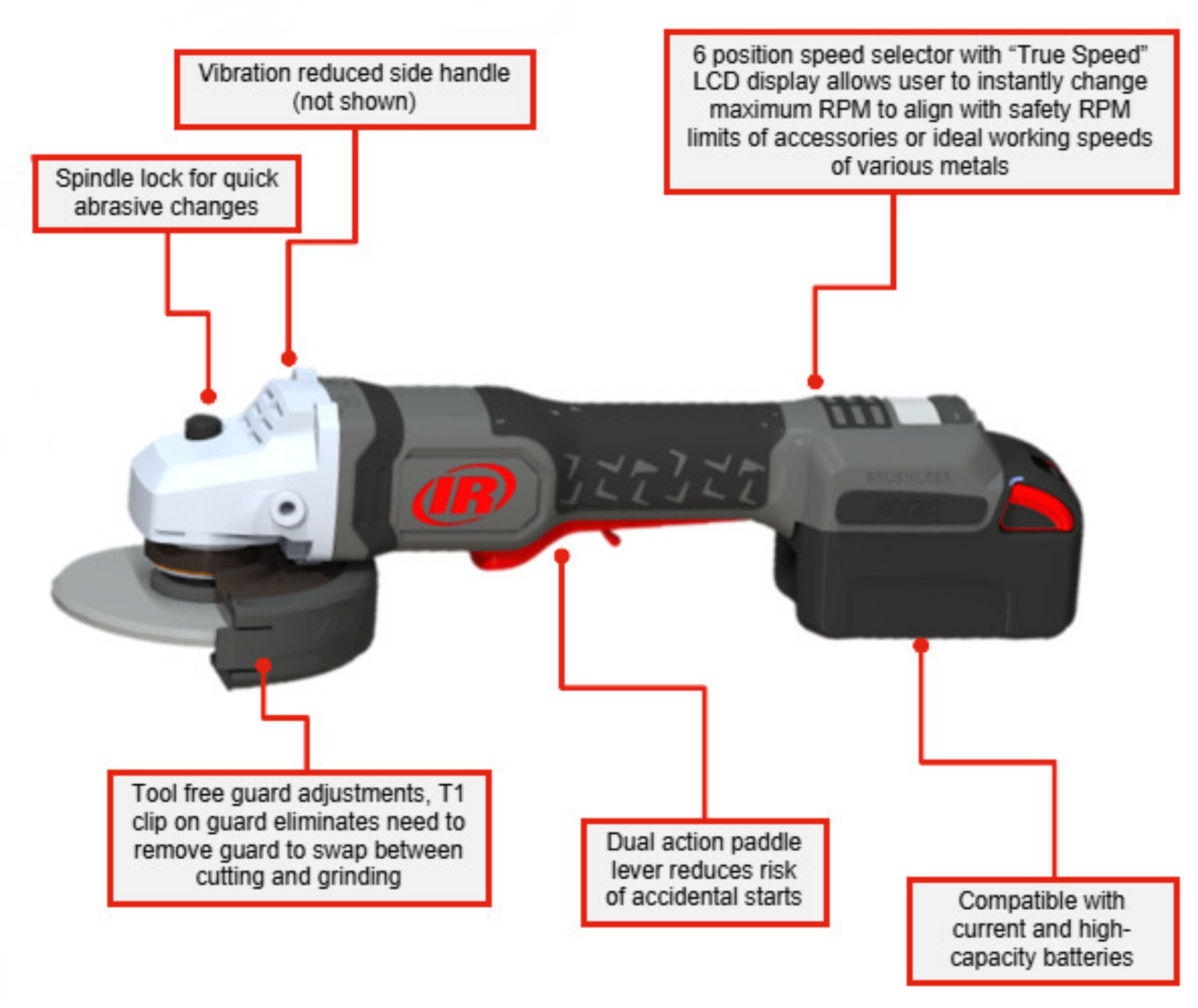

G5352 angle grinder with its speed selector, LCD, spindle lock, guard, side handle, and paddle switch labeled.

Feature	What It Means for You
1.0+ HP brushless motor	Delivers power for grinding and cutting while helping extend motor life and reduce maintenance.
Six-position speed selector	Lets you match the selected speed to the approved accessory, material, and application.
“True Speed” LCD display	Shows the maximum RPM for the selected position before startup.
3,500–8,000 RPM speed range	Provides selectable speeds for different approved accessories and metalworking tasks.
4.5–5-inch wheel capacity	Accommodates approved grinding and cutting wheels within this size range.
Tool-free guard adjustment and Type 1 clip-on guard	Supports guard repositioning and transitions between approved grinding and cutting configurations.
Anti-vibration side handle	Helps reduce operator fatigue during extended grinding.
Spindle lock	Helps make wheel and accessory changes faster.
Kickback protection	Detects wheel binding to help reduce kickback-related injury risk.
E-brake	Stops the wheel in under two seconds after the paddle switch is released.
Dual-action paddle switch	Helps reduce accidental activation.
IQV20™ battery compatibility	Works with all IQV20 batteries, including current and high-capacity batteries, allowing battery sharing across the platform.

Understanding the Speed Display

The G5352 features a six-position speed selector and a “True Speed” LCD display, with a stated speed range of 3,500–8,000 RPM. The LCD shows the maximum RPM for the selected position before startup, helping you identify the setting before beginning work.

Selecting a suitable speed helps match tool performance to the accessory and material. The presentation identifies this control as useful for different metals and non-woven accessories, helping improve results and protect abrasive life.

When selecting a speed:

Check the accessory’s maximum rated speed. The maximum RPM for the selected tool setting must not exceed the accessory’s speed rating.
Confirm accessory suitability. Wheel diameter, wheel type, mounting requirements, and guard configuration also determine compatibility.
Follow the applicable tool and accessory instructions. The displayed RPM helps you select a setting but does not establish accessory compatibility by itself.

Grinding and Cutting Configurations

The G5352 supports 4.5–5-inch wheels and features tool-free guard adjustment and a Type 1 clip-on guard. The presentation describes the clip-on design as allowing transitions between grinding and cutting without removing the base guard.

The spindle lock helps make wheel and accessory changes faster. Use the approved wheel, guard, and mounting components for each application, and follow the model-specific installation instructions.

Battery Platform

The G5352 is part of the IQV20™ cordless battery platform. It works with all IQV20 batteries, including current and high-capacity batteries, allowing users to share batteries with other tools across the platform.

Cordless operation supports work around vehicles, fabrication areas, and other locations where access to compressed air or electrical outlets may be limited.

Tool Weight

The G5352 weighs 3.7 lb without the battery. Total operating weight depends on the installed battery and accessory.

Need Help?

If assistance is needed in the product selection process, please contact Ingersoll Rand's Power Tool Technical Support Team through Submit a Request via our Help Center, email at IRToolHelp@irco.com, or call us at 866-TOOL-HLP (866-866-5457).

Manuals & Downloads

Refer to the following documents for battery use, care and charging safety:

Use the instructions applicable to your battery and charger model.
