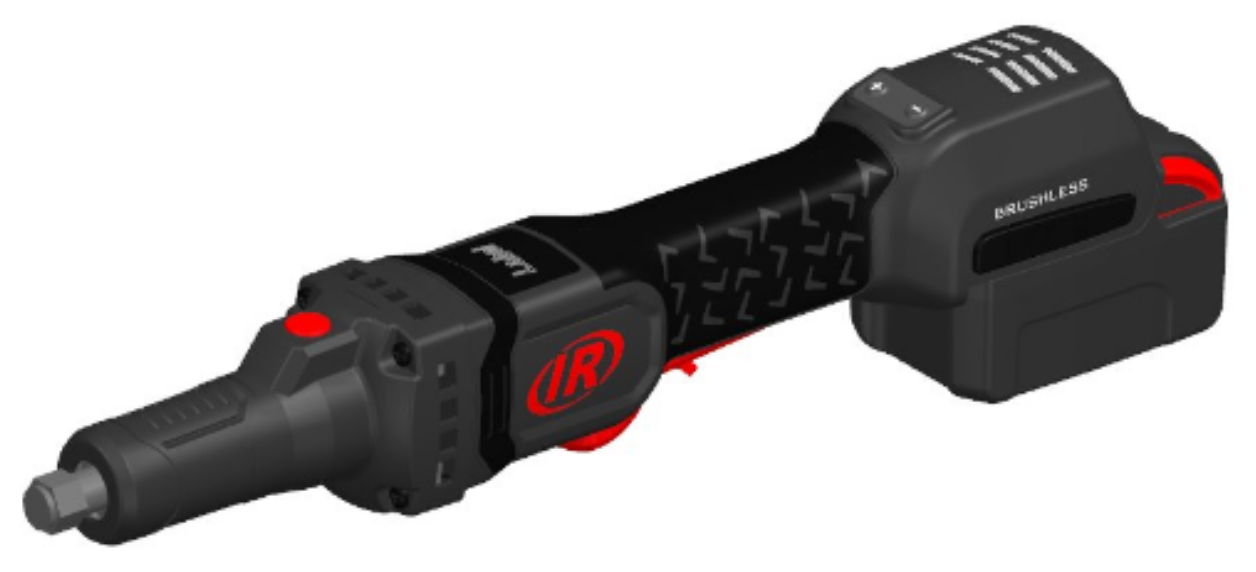

The G5111 IQV20™ Cordless Die Grinder is designed for detailed grinding, deburring and finishing. Its cordless design helps users move around the workpiece, while selectable speeds and an integrated work light support visibility and control.
Safety Notice
Read and follow the applicable tool, battery, charger and accessory safety information before use. The features described here do not replace the safety instructions or operating procedures for your tool.
Grinder Applications
The G5111 accommodates approved 2-inch cutting and 3-inch sanding accessories for detailed grinding, deburring, and finishing. Its compact design supports work inside machinery and in areas an angle grinder may not reach.
| Work Area | Typical Applications |
|---|---|
| Vehicle service | Cylinder honing, deburring, and surface finishing. |
| Metal fabrication | Weld preparation, weld cleanup, blending, and finishing. |
| Machinery and equipment maintenance | Grinding and finishing inside machinery and other areas with limited access. |
| Manufacturing | Surface finishing, removing sharp edges from cast components, and deburring internal passages, pockets, and openings. |

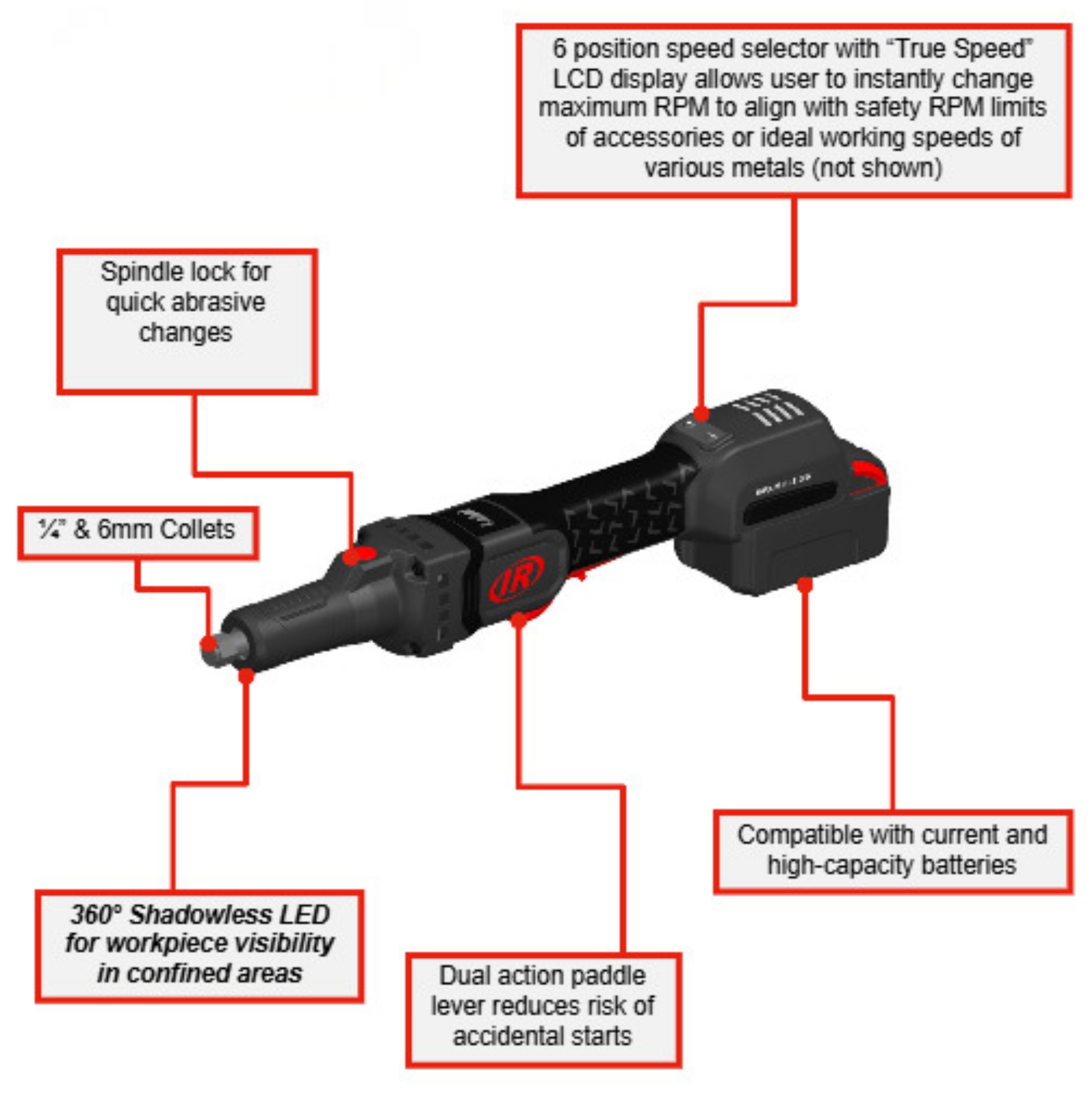

Features at a Glance
| Feature | What It Means for You |
|---|---|
| 1.0+ HP brushless motor | Provides power for fast material removal, cutting, and finishing while helping extend motor life and reduce maintenance. |
| Six-position speed selector and LCD | Lets you select a speed setting for the accessory and application and view its selected maximum RPM before startup. |
| Maximum speed of 25,000 RPM | Supports cutting, sanding, blending, and finishing with accessories rated for the selected speed. |
| 360° Shadowless LED | Illuminates the workpiece from multiple angles to improve visibility in confined areas. |
| Spindle lock | Helps make accessory changes faster. |
| ¼-inch and 6 mm collets | Accommodate the corresponding accessory shank sizes when used in an approved configuration. |
| Compatibility with 2-inch cutting and 3-inch sanding accessories | Supports cutting and finishing tasks with approved accessories of these sizes. |
| E-brake | Stops the spindle in under two seconds after the paddle switch is released. |
| Dual-action paddle switch | Helps reduce accidental activation. |
| IQV20™ battery compatibility | Works with all IQV20 batteries, including current and high-capacity batteries, allowing battery sharing across the platform. |
Understanding the Speed Display
The G5111 Die Grinder features a six-position speed selector and a “True Speed” LCD display, with a maximum tool speed of 25,000 RPM. The LCD shows the maximum RPM for the selected position before startup, helping you choose a setting that matches the accessory’s speed rating and the work being performed.
The six speed settings provide control for cutting, sanding, blending, and finishing. Matching the selected speed to the approved accessory and material helps improve results, protect accessory life, and reduce the risk of surface damage.
When selecting a speed:
- Check the accessory’s maximum rated speed. The maximum RPM for the selected tool setting must not exceed the accessory’s speed rating.
- Confirm accessory compatibility. The G5111 accommodates ¼-inch and 6 mm collets and is rated for approved 2-inch cutting and 3-inch sanding accessories. Diameter, shank size, speed rating, and mounting requirements all affect suitability.
- Follow the applicable tool and accessory instructions. Use the displayed maximum RPM to help select an appropriate setting for the application.
Seeing the Work Area
The 360° Shadowless LED illuminates the workpiece from all angles around the accessory, helping reduce shadows and improve visibility in confined spaces and machine enclosures.
This added visibility helps you see details during deburring, surface finishing, and weld cleanup, particularly inside machinery or in areas with limited external lighting.
Accessory Compatibility
The G5111 accommodates ¼-inch and 6 mm collets and is rated for approved 2-inch cutting and 3-inch sanding accessories. This supports a range of cutting, sanding, blending, deburring, cylinder honing, and surface-finishing applications.
Use the collet that matches the approved accessory’s shank size, and follow the model-specific installation instructions. The spindle lock helps make accessory changes faster.
Before installing an accessory, confirm that its diameter, shank size, speed rating, and mounting requirements are suitable for the tool. Use the six-position speed selector and LCD to choose a setting whose maximum RPM does not exceed the accessory’s rated speed. The tool’s maximum speed is 25,000 RPM.
Battery Platform
The G5111 is part of the IQV20™ 20V cordless battery platform. It works with all IQV20 batteries, including current and high-capacity batteries, allowing users to share batteries with other tools across the platform.
Cordless operation supports mobile work and tasks inside machinery without requiring an air compressor or power cord.
Need Help?
If assistance is needed in the product selection process, please contact Ingersoll Rand's Power Tool Technical Support Team through Submit a Request via our Help Center, email at IRToolHelp@irco.com, or call us at 866-TOOL-HLP (866-866-5457).
Manuals & Downloads
Refer to the following documents for battery use, care and charging safety:
- Battery Product Information — BL12, BL20 and BL40 Series (48377287)
- Battery Safety Information (10567840)
- Battery Charger Safety Information (10567832)
Use the instructions applicable to your battery and charger model.
