2922 - Product Information

Product Description and Features:

Introducing the Ingersoll Rand® 2922 Series. These powerful and innovative 3/4" and 1" square drive Impact Wrenches deliver durability at an unmatched economic value. The 2922 Series delivers 1,450 ft-lb of Max Reverse torque. The tool has durability in the harshest environments with all metal construction. The impacts are available in the following drive sizes,

• 2922P1 -- 3/4" Pistol Impact Wrench
• 2922P3 -- 1" Pistol Impact Wrench

Click here to see additional details on the specs, images, and availability.

Installation and Maintenance:

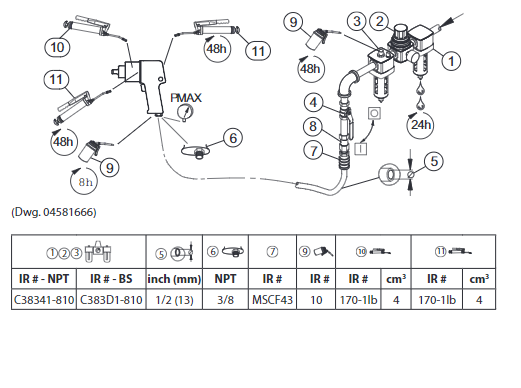

Prior to first use, ensure you have a 3/8" NPT fitting and 1/2" min. hose size. In addition, the tool requires 90 PSI and 60 CFM from your compressor. Additional product installation and information details can be found here.

The tool requires  8-12 drops of our #10 oil through the air inlet prior to each use. After 48 hours of runtime (48 hours of the trigger being pressed), the tool requires 4cc of our #170 grease through the grease fitting on the side of the tool. Please see below for full maintenance instructions.

Service and Repair:

See the 2922 Series Maintenance Information manual for procedures to service and repair the tool.

See Pneumatic Impact Tool Diagnostic for aid in general diagnosis of impact tool problems.

Warranty

Warranty: Use our normal process.

One-year Limited Warranty Coverage – Policy Statement

Managed Warranty Service – If non servicing dealers wish to have a customer tool repaired, submit a repair request to our Managed Warranty Service:  Simple, Fast Repair.

Warranty Claims management:  Reimbursement for warranty labor, parts, completes.

• Service Centers/Distributors with Tavant logins:  File a claim in the Warranty Management System (Tavant) for reimbursement.  Part return will be managed through the system.
• Distributors without Tavant logins (defective returns):  Use the link below to request reimbursement for defective products.
  • Submit a Request – for RGA/Defective returns

Manuals

Diagnostic and Service Instructions:  Service 2922 Series (pdf) [coming soon]

Parts Manual: 2922 Parts Manual (pdf)

Product Information: 2922 Product lnformation (pdf)

Maintenance Information: 2922 Maintenance Information (pdf)

Technical Customer Service

Technical, Warranty and Quality Support - reach our teams globally

Submit a Request – for general Technical or Warranty support

Report a Quality Issue - directly to our Technical Services Team.

Email:  irtoolhelp@irco.com

Toll Free Phone:  800-483-4981 (US and CA only)
