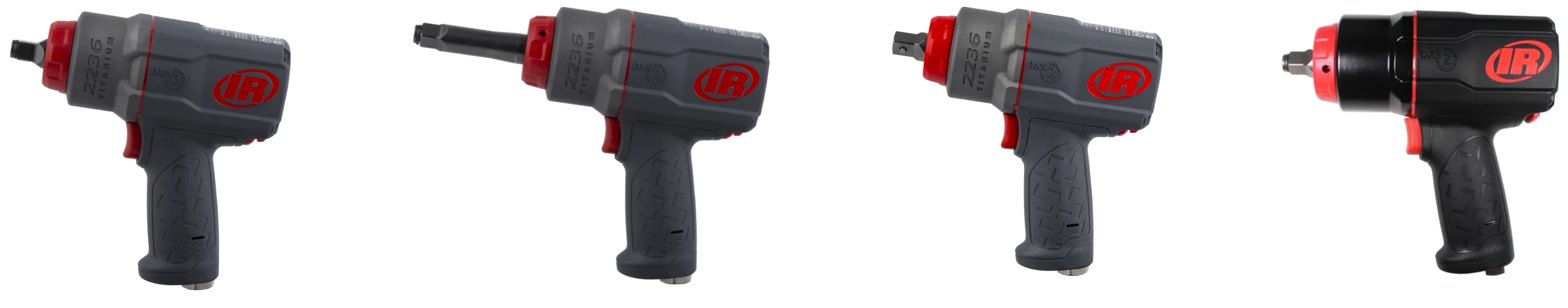

The Ingersoll Rand 2236 Series DXS® Air Impact Wrenches are pneumatic tools for installing and removing threaded fasteners. The family includes titanium-hammer-case QTiMAX models and the aluminum-hammer-case 2236QXPA.
The DXS® Drive Xchange System™ allows compatible anvils to be exchanged to suit different drive sizes and access requirements. A direct greasing system provides access to the impact-mechanism grease fitting behind the removable anvil.
Note: The series includes three primary tool configurations. High-visibility orange, green, and red versions are color variants of the standard-anvil tool.
Finding the Information You Need
| If You Need To… | Use This Article |
|---|---|
| Compare models and configurations | Choosing a 2236 Series DXS® Air Impact Wrench |
| Connect and operate the tool | Setting Up and Using 2236 Series DXS® Air Impact Wrenches |
| Perform routine care | Maintaining and Lubricating 2236 Series DXS® Air Impact Wrenches |
| Check a performance problem | Troubleshooting 2236 Series DXS® Air Impact Wrenches |
| Compare DXS attachment types | Understanding DXS® Anvils and Impact Sockets |
| Replace an interchangeable anvil | Changing DXS® Anvils on 2236 Series Air Impact Wrenches |
Model Configurations
| Model | Supplied Drive Configuration | Distinguishing Feature |
|---|---|---|
| 2236QTiMAX | 1/2-inch standard anvil | Titanium hammer case |
| 2236QTiMAX-2 | 1/2-inch anvil with 2-inch extension | Extended reach |
| 2236QPTiMAX | 1/2-inch pin-retainer anvil | Pin-style socket retention |
| 2236QTiMAX-G, -O, -R | 1/2-inch standard anvil | Green, orange, or red identification options |
| 2236QXPA | 1/2-inch standard anvil | Aluminum hammer case |
Note: The high-visibility QTiMAX colors help identify tools; they do not designate different power levels. Use the complete model number when selecting documentation and parts.
Need Help?
If the tool is damaged or does not operate correctly after verifying the air supply and completing the recommended maintenance, stop using the tool and refer to the applicable product documentation.
If assistance is needed in the product selection process, please contact Ingersoll Rand's Power Tool Technical Support Team through Submit a Request via our Help Center, email at IRToolHelp@irco.com, or call us at 800-TOOL-HLP (800-866-5457).
Manuals & Downloads
Select the documents for your exact model. All links below open PDF documents.
Safety Information
2236QTiMAX Series Manuals
- 2236MAX Series Product Information
- 2236QTiMAX Series Parts Information
- 2236QTiMAX Series Declaration of Conformity
2236QXPA Manuals
Product Flyers
- 2236QTiMAX Series Flyer
- 2236QTiMAX High Visibility Series Flyer
- 2236QXPA DXS® Quiet Air Impact Wrench Flyer
