MAX Series - Product Information

Product Description and Features

MAX Series high-quality die grinders are now available in various configurations and speeds to ensure you have the perfect tool for any task. With a strong 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM, including angle, straight, and extended tools, you'll have more versatility in your toolbox. These grinders are specifically crafted for daily use in vehicle repair and industrial environments, providing top-notch performance without breaking the bank.

The 5109MAX grinders are designed with advanced features and upgrades to offer maximum power, performance, and comfort for efficient work. Ingersoll Rand, a company with over a century of experience in the automotive industry, has created the 5102MAX Air Angle Die Grinder to provide powerful performance and superior comfort. The Revolution Series Die Grinder, with its ergonomic body and straight handle design, is built to be powerful, adaptable, and comfortable to use. The 5103MAX grinders are also equipped with advanced features and upgrades to deliver exceptional power, performance, and comfort for successful completion of tasks.

Click here to see more information.

Installation, Setup and Use

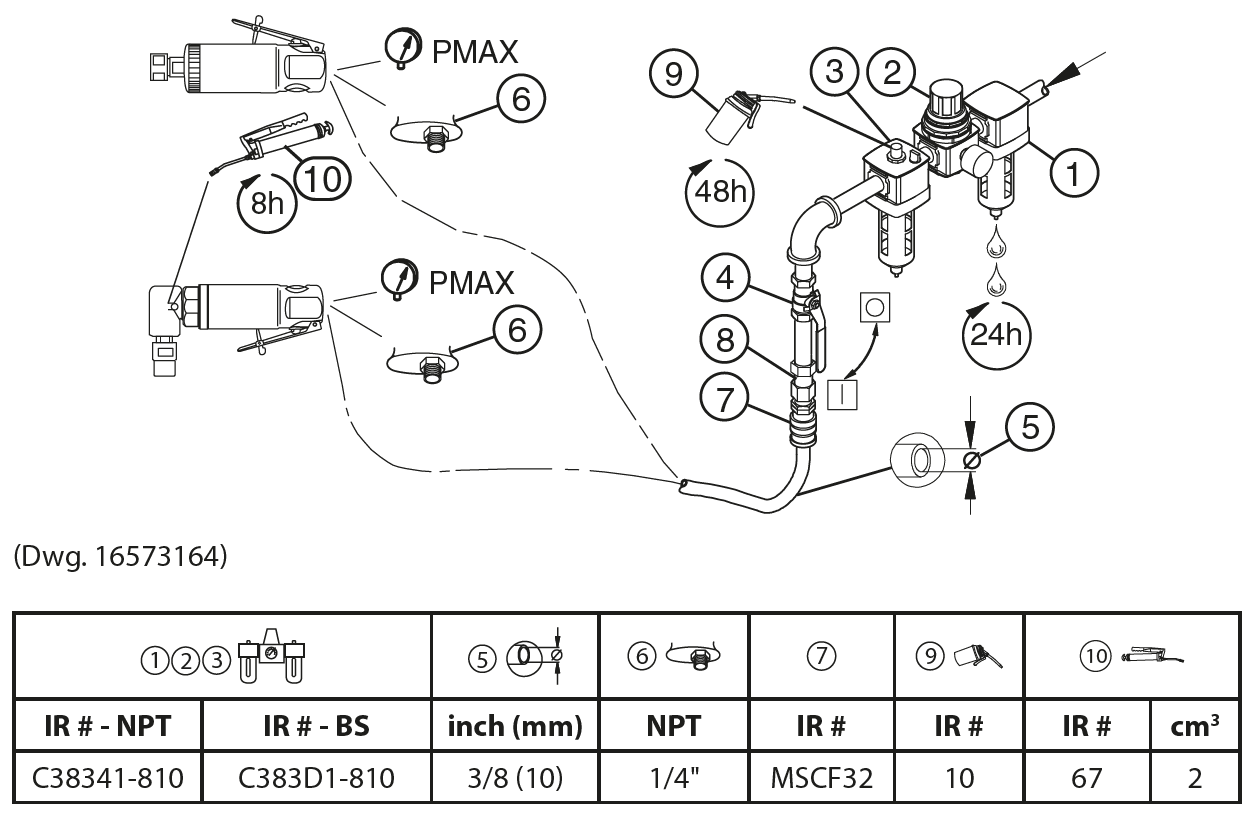

Size air supply line to ensure tool's maximum operation pressure (PMAX) at tool inlet. Drain condensate from valve(s) at low point(s) of piping, air filter and compressor tank daily.  Install a properly sized Safety Air Fuse upstream of hose and use an anti-whip device across any hose coupling without internal shut-off, to prevent hose whipping if a hose fails or coupling disconnects.  MAX Series Die Grinder vanes are made of a special material that does not require constant lubrication.  However, we do suggest periodic lubrication for optimal service life.  See above.  Maintenance frequency is shown in a circular arrow and defined as h=hours, d=days, and m=months of actual use.

Service, Repair, Maintenance

PENDING

Manuals

Product Information Manual(s):

47679427 - Applies to 5103MAX and 5109MAX

48483697 - Applies to 5102MAX, 5104MAX, 5106MAX, 5107MAX, 5108MAX, 5208MAX (includes -M)

Parts Information Manual(s):

47679428 - Applies to 5103MAX and 5109MAX

48483671 - Applies to 5102MAX, 5104MAX, 5106MAX, 5107MAX, 5108MAX, 5208MAX (includes -M)

Safety Information Manual:

04580288 - Applies to MAX Series grinders

Problem Reporting

Technical, Warranty and Quality Support

If assistance is needed in the product selection process, please contact Ingersoll Rand's Power Tool Technical Support Team through Submit a Request via our Help Center, or email at IRTechSupport@irco.com or call us at 866-TOOL-HLP (866-866-5457).
