Maintaining and Lubricating 2236 Series DXS® Air Impact Wrenches

Routine care includes separate lubrication of the air motor and impact mechanism, inspection of attachments, and maintenance of the air supply.

Safety Notice

Isolate and disconnect the air supply before maintenance. Internal repair belongs with an Ingersoll Rand Authorized Service Center.

Before You Begin

Identify the model, review its Product Information manual, and clean around the inlet and lubrication points.

Tools & Materials

Ingersoll Rand No. 10 Air Tool Oil
Ingersoll Rand No. 105 grease
Compatible grease gun
DXS® release tool or suitable small hand tool
Clean, lint-free cloths

Maintenance Schedule

Interval	Maintenance
Before each use	Inspect the tool, attachments, hose, and fittings. Check retention and provide air-motor lubrication.
Every hour during extended use without an inline lubricator	Reapply air-motor oil as described below.
Every 8 hours of actual use	Perform the air-line checks indicated in the Product Information lubrication diagram.
Every 48 hours of actual use	Lubricate the impact mechanism with the specified 4 cm³ of No. 105 grease.
After use	Disconnect, wipe clean, inspect, and store in a clean, dry location.
Before storage	Lubricate the air motor to help protect against corrosion.
As needed	Correct air-supply contamination or restrictions and replace damaged accessories.

Lubricating the Air Motor

Use a properly adjusted inline lubricator or manually lubricate through the inlet.

For manual lubrication:

Disconnect the air supply.
Add 10–15 drops of No. 10 Air Tool Oil to the inlet.
Reconnect safely and run briefly to distribute the oil.

During extended operation without a lubricator, reapply oil approximately hourly.

Lubricating the Impact Mechanism

Isolate and disconnect the air supply.

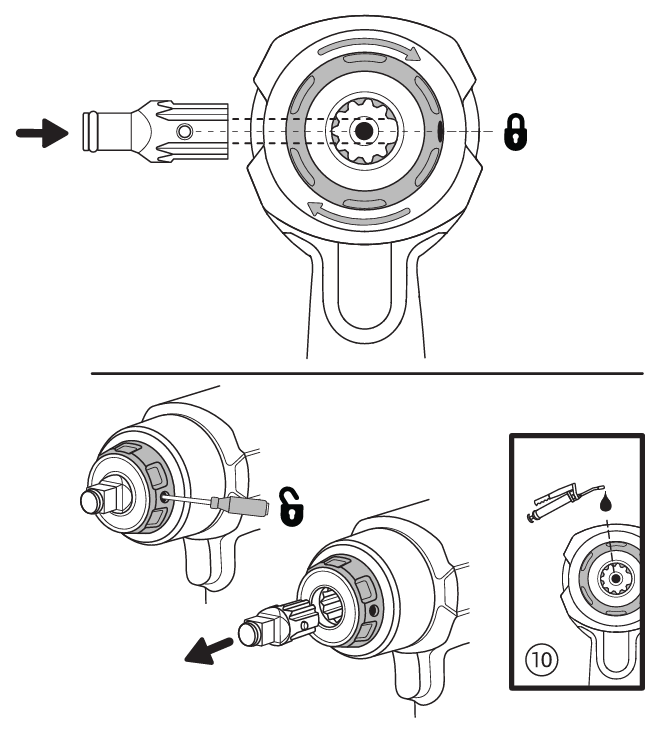

Remove the interchangeable anvil using Changing DXS® Anvils on 2236 Series Air Impact Wrenches.
Clean around the exposed grease fitting.

Grease fitting exposed behind the removable DXS anvil on a 2236 air impact wrench.
Apply 4 cm³ of No. 105 grease using a compatible grease gun.
Reinstall the anvil and verify retention.

Important: Do not substitute a generic pump count for the specified volume; grease-gun output varies.

Need Help?

Arrange service for damaged controls, persistent abnormal operation, or problems requiring internal inspection. For performance symptoms, see Troubleshooting 2236 Series DXS® Air Impact Wrenches.

If assistance is needed in the product selection process, please contact Ingersoll Rand's Power Tool Technical Support Team through Submit a Request via our Help Center, email at IRToolHelp@irco.com, or call us at 800-TOOL-HLP (800-866-5457).
