Choose a 2236 model by comparing its hammer case construction, supplied anvil, socket-retention arrangement, and the space available around the fastener.
Comparing the Standard Models
| Specification | 2236QTiMAX | 2236QXPA |
|---|---|---|

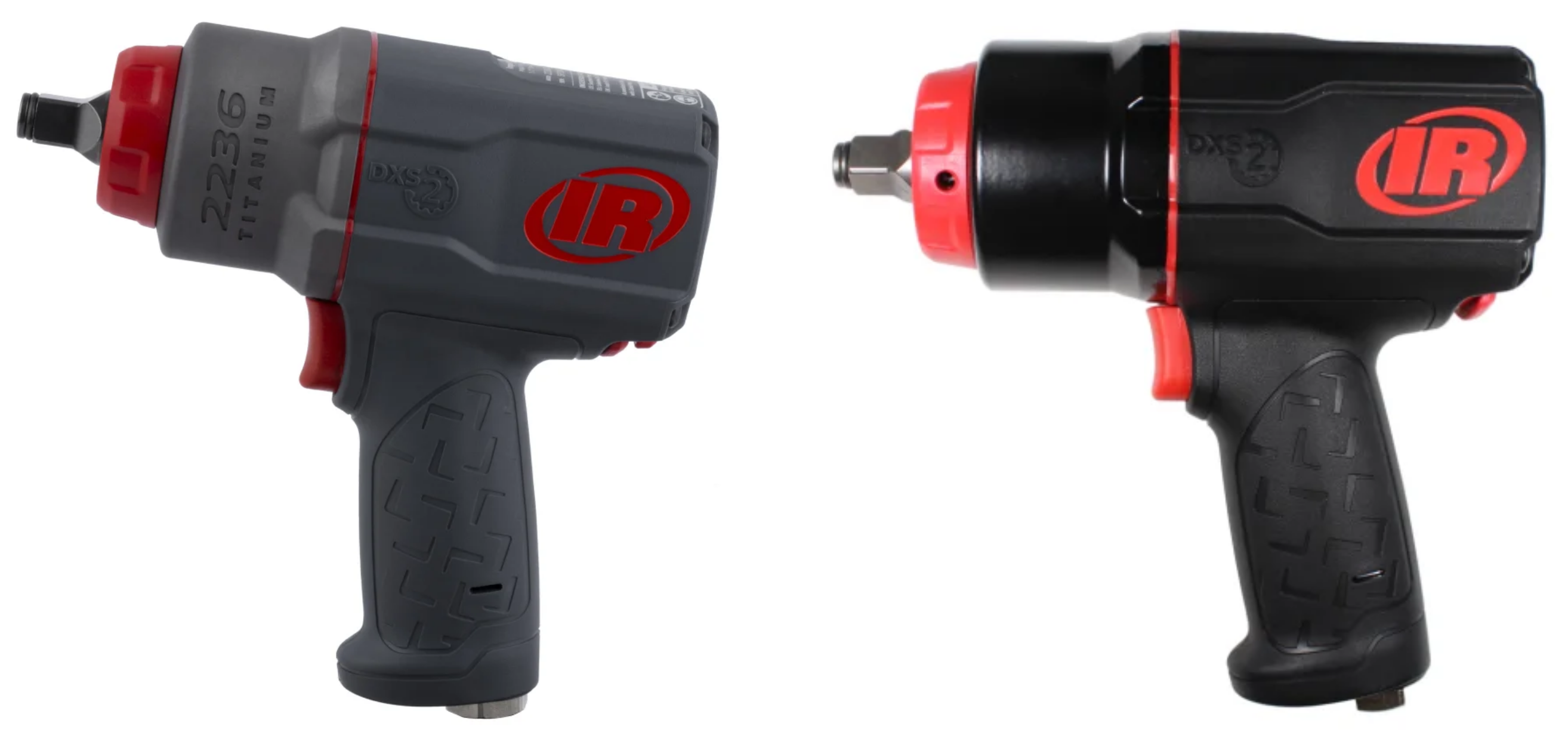

| Hammer case | Titanium | Aluminum |
| Standard drive | 1/2-inch square | 1/2-inch square |
| Published breakaway torque | 1,500 ft-lb | 1,500 ft-lb |
| Maximum free speed | 8,500 RPM | 8,500 RPM |
| Blows per minute | 1,350 | 1,350 |
| Published weight | 4.4 lb (1.99 kg) | 4.4 lb (1.99 kg) |
| Published length | 7.36 in (187 mm) | 7.36 in (187 mm) |
| Air inlet | 1/4-inch NPT | 1/4-inch NPT |
| Minimum hose inside diameter | 3/8 inch (10 mm) | 3/8 inch (10 mm) |
These figures describe the standard configurations. Extended anvils and other attachments change the assembled tool’s reach and may change its weight.
Selecting the Supplied Configuration
| Your Requirement | Configuration to Consider |
|---|---|
| Standard 1/2-inch access | Standard-anvil QTiMAX or QXPA |
| Additional reach from the supplied anvil | 2236QTiMAX-2 |
| Pin-style socket retention | 2236QPTiMAX |
| Easier visual tool identification | High-visibility QTiMAX variant |
| Multiple drive sizes or reaches | Compatible DXS® interchangeable anvils |
For attachment options, see Understanding DXS® Anvils and Impact Sockets.
Checking Application Fit
Confirm that the selected tool, anvil, and socket are appropriate for the fastener and available working space. Also verify that the air system can support the tool during operation.
Breakaway torque is a performance specification, not a controlled tightening setting. Where a connection requires a specified final torque, verify it with suitable torque-measuring equipment.
Manuals & Downloads
Select the documents for your exact model. All links below open PDF documents.
Safety Information
2236QTiMAX Series Manuals
- 2236MAX Series Product Information
- 2236QTiMAX Series Parts Information
- 2236QTiMAX Series Declaration of Conformity
2236QXPA Manuals
Product Flyers
- 2236QTiMAX Series Flyer
- 2236QTiMAX High Visibility Series Flyer
- 2236QXPA DXS® Quiet Air Impact Wrench Flyer
DXS® Anvils & Sockets
- Drive Xchange System™ Anvil Flyer
- Drive Xchange System™ Impact Sockets Flyer
- DXS® Drive Xchange System™ Series Brochure
Need Help?
If assistance is needed in the product selection process, please contact Ingersoll Rand's Power Tool Technical Support Team through Submit a Request via our Help Center, email at IRToolHelp@irco.com, or call us at 800-TOOL-HLP (800-866-5457).
