Product Description and Features

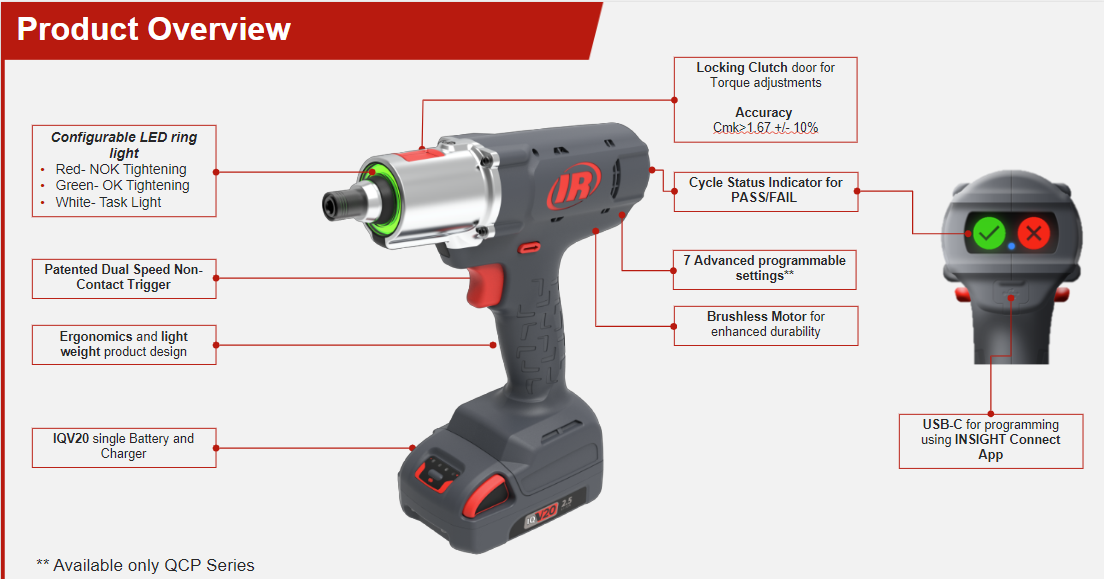

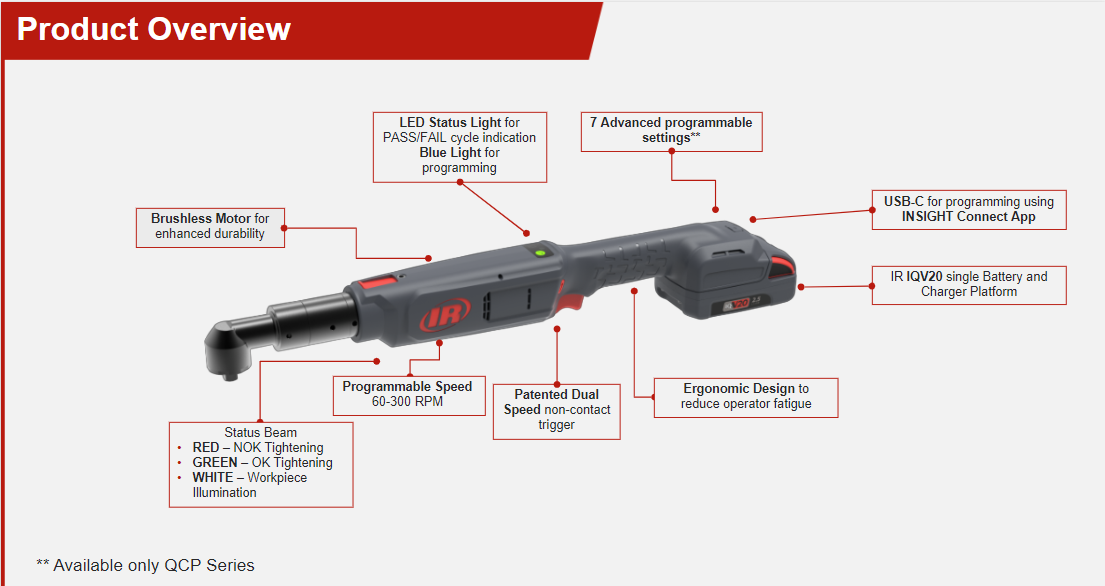

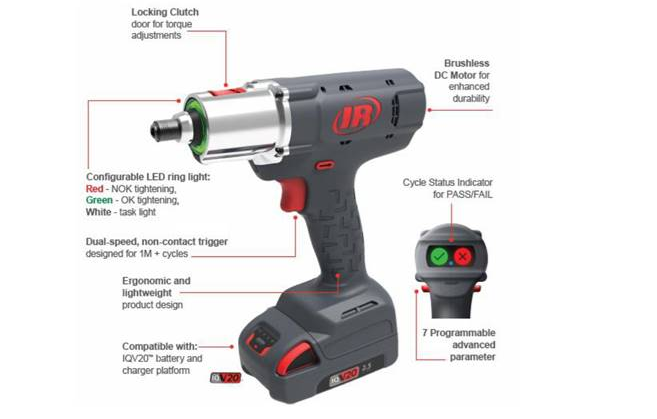

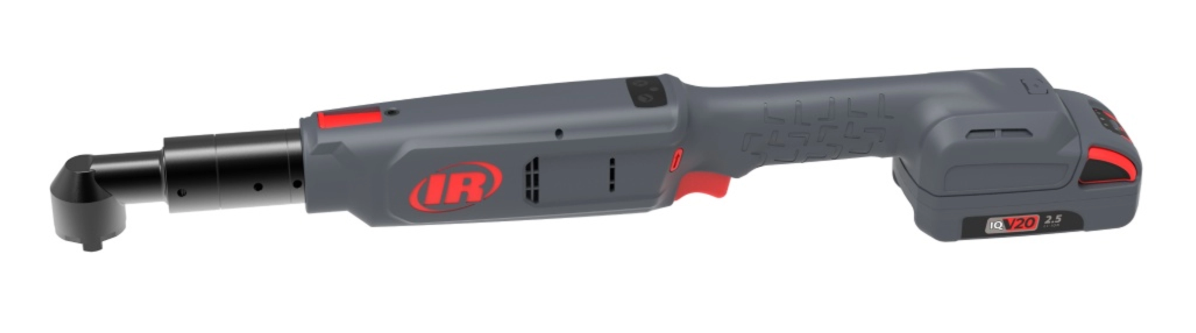

The QC Series Cordless Clutch tools are available for torque ranges from 0.5 Nm to 30 Nm. They are available in programmable (QCP) and non-programmable (QCN) models. Programmable models leverage the INSIGHT Connect App for programming Advanced Settings (Programmable RPM, Tightening Direction, Soft Start, Disable Reverse, Cycle Delay and Rehit Detection). The tools are designed with an easily adjustable clutch mechanism and will deliver a Cmk>1.67 at +/-10% accuracy, ensuring consistent torque results on every application.

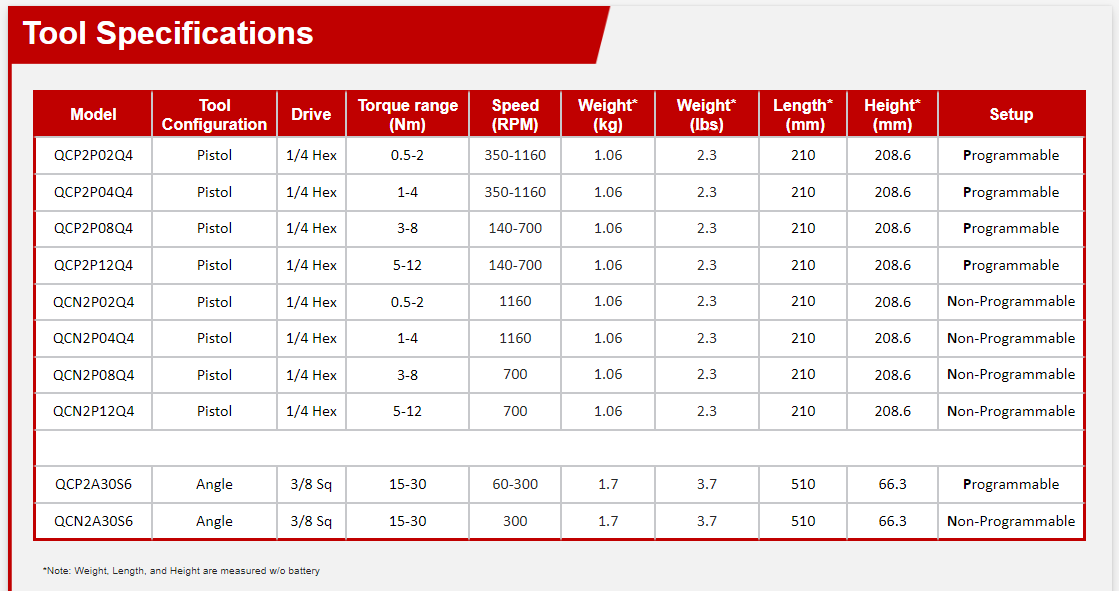

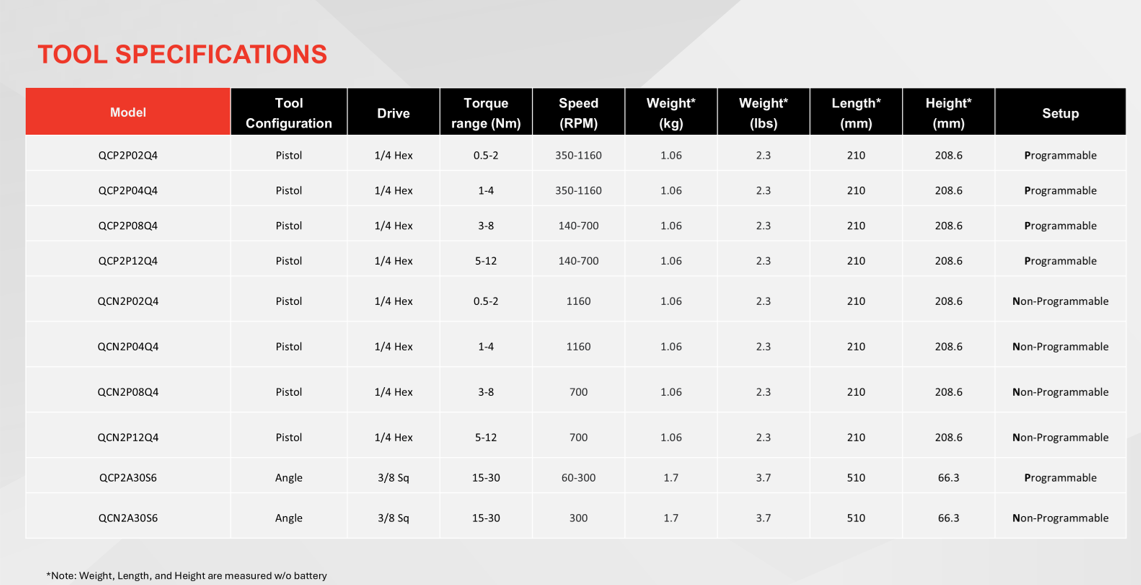

QC Series Clutch Tool Model Numbers and Specifications
Programming QC Clutch Tools
Setting the Clutch
QC Series Clutch Tool 3D Drawings
Click here to download the Pistol stp Drawing.
Clcik here to download the Angle stp Drawing.
QC Series Clutch Tool Manuals
Click here to download manuals.
QCP Error Codes
| QCP Error Codes | |
| Battery low voltage warning | Red light flashing accompanied by a buzzer sound; flashing frequency: ON 300ms, OFF 300ms. |
| Battery voltage protection | Motor stops & Red light flashes 3 times accompanied by a buzzer sound; flashing frequency: ON 1s, OFF 500ms. |
| Battery Shut Down protection | Motor stops & Red light flashes 2 times accompanied by a buzzer sound; flashing frequency: ON 1s, OFF 500ms |
| Circuit board temperature protection | Motor stops & Red light flashes 4 times accompanied by a buzzer sound; flashing frequency: ON 1s, OFF 500ms |
| Start switch, hall board abnormality | Motor stops & Red light flashes 5 times accompanied by a buzzer sound; flashing frequency: ON 1s, OFF 500ms. |
| EEPROM read/write error | Motor stops & Red light flashes 6 times accompanied by a buzzer sound; flashing frequency: ON 1s, OFF 500ms. |
Service, Repair, and Maintenance
Tool repair and maintenance should only be carried out by an Authorized Service Center. Refer all communications to the nearest Ingersoll Rand Office or Distributor.
